BS Rod Seals

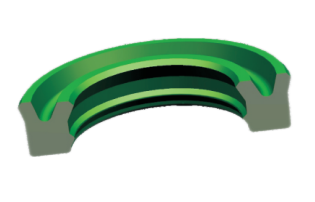

BS Rod Seals is a kind of lip seal specializing in installing piston rods in grooves for a close fit, with a second lip, which can retain some lubricant, and can prevent most of the drying motion and wear motion from occurring.

Materials Properties

Materials：TPU
Hardness：90-95 shore
Color：Green, Blue

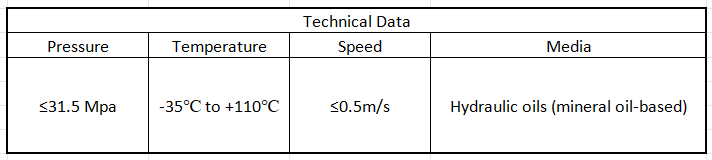

Technical Data

Advantages

Excellent wear resistance.
High resistance to extrusion.
Low permanent deformation in compression.
Suitable for the toughest operating conditions.
Effective protection against external air infiltration

Need to know more about our BS Rod Seals size specification ?

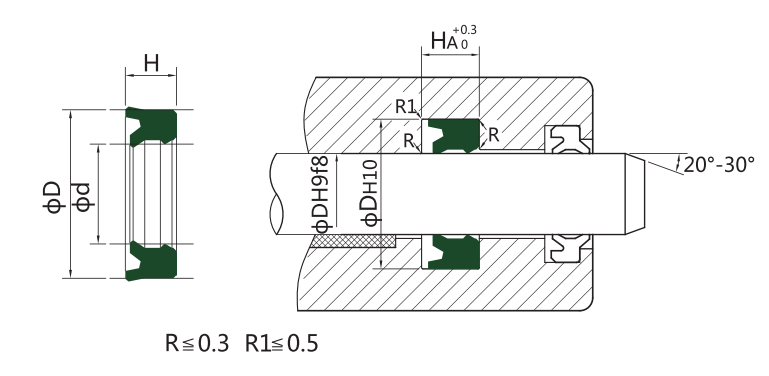

Item	Size	d	D	H	HA
BS	6125	6	12	5	5.6	Get a Quote
BS	8146	8	14	6	6.6	Get a Quote
BS	8165.7	8	16	5.7	6.3	Get a Quote
BS	8166	8	16	6	6.6	Get a Quote
BS	9165.7	9	16	5.7	6.3	Get a Quote
BS	10164.5	10	16	4.5	5	Get a Quote
BS	10174.7	10	17	4.7	5.3	Get a Quote
BS	10175.7	10	17	5.7	6.3	Get a Quote
BS	10185.7	10	18	5.7	6.3	Get a Quote
BS	10186	10	18	6	6.6	Get a Quote
BS	10188	10	18	8	9	Get a Quote
BS	10205	10	20	5	5.6	Get a Quote
BS	10206	10	20	6	6.6	Get a Quote
BS	11.219.25	11.2	19.2	5	5.6	Get a Quote
BS	12186	12	18	6	6.6	Get a Quote
BS	12205	12	20	5	5.6	Get a Quote
BS	12206	12	20	6	6.6	Get a Quote
BS	12.522.58	12.5	22.5	8	9	Get a Quote
BS	12.719.054.5	12.7	19.05	4.5	5	Get a Quote
BS	14205.7	14	20	5.7	6.3	Get a Quote
BS	14215	14	21	5	5.6	Get a Quote
BS	14225	14	22	5	5.6	Get a Quote
BS	14225.7	14	22	5.7	6.3	Get a Quote
BS	14247.3	14	24	7.3	8	Get a Quote
BS	14248	14	24	8	9	Get a Quote
BS	15225	15	22	5	5.6	Get a Quote
BS	15258	15	25	8	9	Get a Quote
BS	16225	16	22	5	5.6	Get a Quote
BS	16226	16	22	6	6.6	Get a Quote
BS	16228	16	22	8	9	Get a Quote
BS	16245	16	24	5	5.6	Get a Quote
BS	16245.7	16	24	5.7	6.3	Get a Quote
BS	16267.3	16	26	7.3	8	Get a Quote
BS	18245	18	24	5	5.6	Get a Quote
BS	18248	18	24	8	9	Get a Quote
BS	18255	18	25	5	5.6	Get a Quote
BS	18258	18	25	8	9	Get a Quote
BS	18265	18	26	5	5.6	Get a Quote
BS	28366	28	36	6	6.6	Get a Quote
BS	28367	28	36	7	7.7	Get a Quote
BS	283610	28	36	10	11	Get a Quote
BS	28387.3	28	38	7.3	8	Get a Quote
BS	28408	28	40	8	9	Get a Quote
BS	284310	28	43	10	11	Get a Quote
BS	30376	30	37	6	6.6	Get a Quote
BS	30385.7	30	38	5.7	6.3	Get a Quote
BS	30386	30	38	6	6.6	Get a Quote
BS	30386.3	30	38	6.3	7	Get a Quote
BS	30406	30	40	6	6.6	Get a Quote
BS	30407.3	30	40	7.3	8	Get a Quote
BS	304010	30	40	10	11	Get a Quote
BS	304510	30	45	10	11	Get a Quote
BS	32426	32	42	6	6.6	Get a Quote
BS	32427	32	42	7	7.7	Get a Quote
BS	32427.3	32	42	7.3	8	Get a Quote
BS	32427.5	32	42	7.5	8.2	Get a Quote
BS	324210	32	42	10	11	Get a Quote
BS	324510	32	45	10	11	Get a Quote
BS	324710	32	47	10	11	Get a Quote
BS	34456	34	45	6	6.6	Get a Quote
BS	35435	35	43	5	5.6	Get a Quote
BS	35435.7	35	43	5.7	6.3	Get a Quote
BS	35436	35	43	6	6.6	Get a Quote
BS	35437	35	43	7	7.7	Get a Quote
BS	35456	35	45	6	6.6	Get a Quote
BS	35457	35	45	7	7.7	Get a Quote
BS	35457.3	35	45	7.3	8	Get a Quote
BS	35457.5	35	45	7.5	8.2	Get a Quote
BS	354510	35	45	10	11	Get a Quote
BS	354716.5	35	47	16.5	17.5	Get a Quote
BS	355010	35	50	10	11	Get a Quote
BS	36437.3	36	43	7.3	8	Get a Quote
BS	36445.7	36	44	5.7	6.3	Get a Quote
BS	36446.3	36	44	6.3	7	Get a Quote
BS	36467.3	36	46	7.3	8	Get a Quote
BS	364610	36	46	10	11	Get a Quote
BS	50608	50	60	8	9	Get a Quote
BS	506010	50	60	10	11	Get a Quote
BS	50636	50	63	6	6.6	Get a Quote
BS	50638	50	63	8	9	Get a Quote
BS	5065 9	50	65	9	10	Get a Quote
BS	506510	50	65	10	11	Get a Quote
BS	506511.4	50	65	11.4	12.4	Get a Quote
BS	526210	52	62	10	11	Get a Quote
BS	53636	53	63	6	6.6	Get a Quote
BS	556310	55	63	10	11	Get a Quote
BS	55656	55	65	6	6.6	Get a Quote
BS	55657.3	55	65	7.3	8	Get a Quote
BS	55658	55	65	8	9	Get a Quote
BS	556510	55	65	10	11	Get a Quote
BS	556511.4	55	65	11.4	12.4	Get a Quote
BS	556512	55	65	12	13	Get a Quote
BS	556710	55	67	10	11	Get a Quote
BS	556810	55	68	10	11	Get a Quote
BS	55707.5	55	70	7.5	8.2	Get a Quote
BS	557011.4	55	70	11.4	12.4	Get a Quote
BS	557012	55	70	12	13	Get a Quote
BS	56667.5	56	66	7.5	8.2	Get a Quote
BS	567111.4	56	71	11.4	12.4	Get a Quote
BS	606813	60	68	13	14	Get a Quote
BS	60706	60	70	6	6.6	Get a Quote
BS	60707.3	60	70	7.3	8	Get a Quote
BS	60707.5	60	70	7.5	8.2	Get a Quote
BS	607010	60	70	10	11	Get a Quote
BS	60717	60	71	7	7.7	Get a Quote
BS	607310	60	73	10	11	Get a Quote
BS	60759	60	75	9	10	Get a Quote
BS	607510	60	75	10	11	Get a Quote
BS	607511.4	60	75	11.4	12.4	Get a Quote
BS	607512	60	75	12	13	Get a Quote
BS	607513	60	75	13	14	Get a Quote
BS	508012	60	80	12	13	Get a Quote
BS	63718	63	71	8	9	Get a Quote
BS	63736	63	73	6	6.6	Get a Quote
BS	75909.5	75	90	9.5	10.5	Get a Quote
BS	759010	75	90	10	11	Get a Quote
BS	759012	75	90	12	13	Get a Quote
BS	759512	75	95	12	13	Get a Quote
BS	788611.5	78	86	11.5	12.5	Get a Quote
BS	80906	80	90	6	6.6	Get a Quote
BS	80907.3	80	90	7.3	8	Get a Quote
BS	80908	80	90	8	9	Get a Quote
BS	809012	80	90	12	13	Get a Quote
BS	809310	80	93	10	11	Get a Quote
BS	80959	80	95	9	10	Get a Quote
BS	809510	80	95	10	11	Get a Quote
BS	809511.4	80	95	11.4	12.4	Get a Quote
BS	809512	80	95	12	13	Get a Quote
BS	8010012	80	100	12	13	Get a Quote
BS	859311.5	85	93	11.5	12.5	Get a Quote
BS	85959	85	95	9	10	Get a Quote
BS	851009	85	100	9	10	Get a Quote
BS	8510010	85	100	10	11	Get a Quote
BS	8510012	85	100	12	13	Get a Quote
BS	8510512	85	105	12	13	Get a Quote
BS	909811.5	90	98	11.5	12.5	Get a Quote
BS	901006.5	90	100	6.5	7.2	Get a Quote
BS	708512	70	85	12	13	Get a Quote
BS	708512.5	70	85	12.5	13.5	Get a Quote
BS	75856	75	85	6	6.6	Get a Quote
BS	75857	75	85	7	7.7	Get a Quote
BS	75857.3	75	85	7.3	8	Get a Quote
BS	75858	75	85	8	9	Get a Quote
BS	758511.5	75	85	11.5	12.5	Get a Quote
BS	758810	75	88	10	11	Get a Quote
BS	75909	75	90	9	10	Get a Quote
BS	10011011.4	100	110	11.4	12.4	Get a Quote
BS	10011014	100	110	14	15	Get a Quote
BS	1001158	100	115	8	9	Get a Quote
BS	1001159	100	115	9	10	Get a Quote
BS	10011510	100	115	10	11	Get a Quote
BS	10011512	100	115	12	13	Get a Quote
BS	10012012	100	120	12	13	Get a Quote
BS	10012014.5	100	120	14.5	15.5	Get a Quote
BS	10013015	100	130	15	16	Get a Quote
BS	10511311.5	105	113	11.5	12.5	Get a Quote
BS	1051209	105	120	9	10	Get a Quote
BS	10512010	105	120	10	11	Get a Quote
BS	10512512	105	125	12	13	Get a Quote
BS	10512514.5	105	125	14.5	15.5	Get a Quote
BS	10512515	105	125	15	16	Get a Quote
BS	10512516	105	125	16	17	Get a Quote
BS	11011810.5	110	118	10.5	11.5	Get a Quote
BS	1101259	110	125	9	10	Get a Quote
BS	1101259.6	110	125	9.6	10.6	Get a Quote
BS	11012511	110	125	11	12	Get a Quote
BS	11012512	110	125	12	13	Get a Quote
BS	11012514.5	110	125	14.5	15.5	Get a Quote
BS	11013010	110	130	10	11	Get a Quote
BS	11013012	110	130	12	13	Get a Quote
BS	11013014.5	110	130	14.5	15.5	Get a Quote
BS	1151309	115	130	9	10	Get a Quote
BS	11513010	115	130	10	11	Get a Quote
BS	11513012	115	130	12	13	Get a Quote
BS	11513512	115	135	12	13	Get a Quote
BS	11513516	115	135	16	17	Get a Quote
BS	11812613	118	126	13	14	Get a Quote
BS	12013011.4	120	130	11.4	12.4	Get a Quote
BS	12013014	120	130	14	15	Get a Quote
BS	12013017	120	130	17	18	Get a Quote
BS	1201359	120	135	9	10	Get a Quote
BS	12013514.5	120	135	14.5	15.5	Get a Quote
BS	12014012	120	140	12	13	Get a Quote
BS	12014015	120	140	15	16	Get a Quote
BS	19021016	190	210	16	17	Get a Quote
BS	19320111.5	193	201	11.5	12.5	Get a Quote
BS	20021112	200	211	12	13	Get a Quote
BS	20022012	200	220	12	13	Get a Quote
BS	20022518.2	200	225	18.2	19.2	Get a Quote
BS	21023012	210	230	12	13	Get a Quote
BS	21023015	210	230	15	16	Get a Quote
BS	21023518	210	235	18	19	Get a Quote
BS	21024018	210	240	18	19	Get a Quote
BS	22024016	220	240	16	17	Get a Quote
BS	22024516	220	245	16	17	Get a Quote
BS	22025022.7	220	250	22.7	23.7	Get a Quote
BS	228.52469	228.5	246	9	10	Get a Quote
BS	23025017	230	250	17	18	Get a Quote
BS	23026022.7	230	260	22.7	23.7	Get a Quote
BS	24026012	240	260	12	13	Get a Quote
BS	25028022.7	250	280	22.7	23.7	Get a Quote
BS	28031018	280	310	18	19	Get a Quote
BS	30033018	300	330	18	19	Get a Quote
