HBY Rod Seals

products

HBY Rod Seals

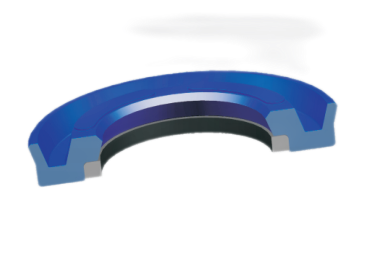

HBY Rod Seals is used in combination with piston bar seals to absorb shock and fluctuations under high loads, isolate high temperature fluids, and improve the durability of seals.

Materials Properties

Materials：TPU + POM
Hardness：90-95 shore
Color：Yellow, Blue

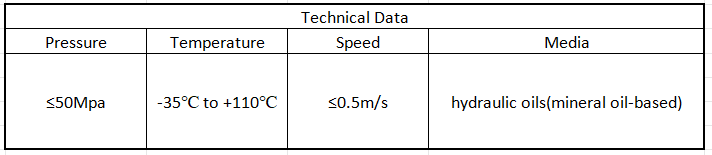

Technical Data

Advantages

Excellent wear resistance.
High resistance to extrusion.
Low permanent deformation in compression.
Effective protection against outside air infiltration.
Easy to install

Need to know more about our HBY Rod Seals size specification ?

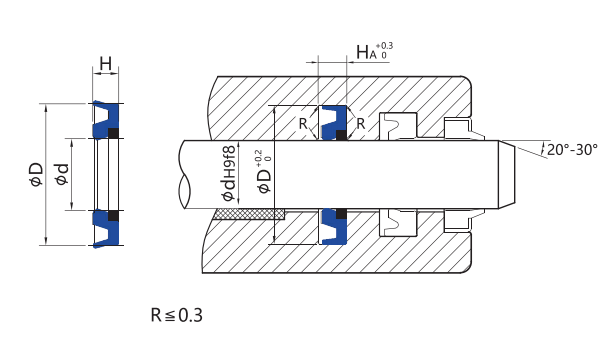

Item	Size	d	D	H	HA
HBY	4055.56	40	55.5	6	6.3	Get a Quote
HBY	4560.56	45	60.5	6	6.3	Get a Quote
HBY	5065.56	50	65.5	6	6.3	Get a Quote
HBY	5570.56	55	70.5	6	6.3	Get a Quote
HBY	6075.56	60	75.5	6	6.3	Get a Quote
HBY	6378.56	63	78.5	6	6.3	Get a Quote
HBY	6580.56	65	80.5	6	6.3	Get a Quote
HBY	7085.56	70	85.5	6	6.3	Get a Quote
HBY	7590.56	75	90.5	6	6.3	Get a Quote
HBY	8095.56	80	95.5	6	6.3	Get a Quote
HBY	85100.56	85	100.5	6	6.3	Get a Quote
HBY	90105.56	90	105.5	6	6.3	Get a Quote
HBY	95110.56	95	110.5	6	6.3	Get a Quote
HBY	100115.56	100	115.5	6	6.3	Get a Quote
HBY	105120.56	105	120.5	6	6.3	Get a Quote
HBY	110125.56	110	125.5	6	6.3	Get a Quote
HBY	115130.56	115	130.5	6	6.3	Get a Quote
HBY	120135.56	120	135.5	6	6.3	Get a Quote
HBY	125140.56	125	140.5	6	6.3	Get a Quote
HBY	130145.56	130	145.5	6	6.3	Get a Quote
HBY	135150.56	135	150.5	6	6.3	Get a Quote
HBY	140155.56	140	155.5	6	6.3	Get a Quote
HBY	145160.56	145	160.5	6	6.3	Get a Quote
HBY	150165.56	150	165.5	6	6.3	Get a Quote
HBY	155170.56	155	170.5	6	6.3	Get a Quote
HBY	160175.56	160	175.5	6	6.3	Get a Quote
HBY	170185.56	170	185.5	6	6.3	Get a Quote
HBY	180195.56	180	195.5	6	6.3	Get a Quote
