IDU Rod Seals

products

IDU Rod Seals

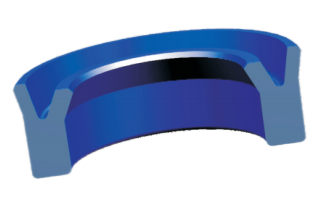

IDU Rod Seals is installed in the groove close to the installation of the piston rod dedicated to a lip seal, the use of materials imported TPU

Materials Properties

Materials：TPU
Hardness：90-95 shore
Color：Blue, Green, Yellow

Technical Data

Advantages

High quality and wear resistance
Higher withstand pressure
Low compression set

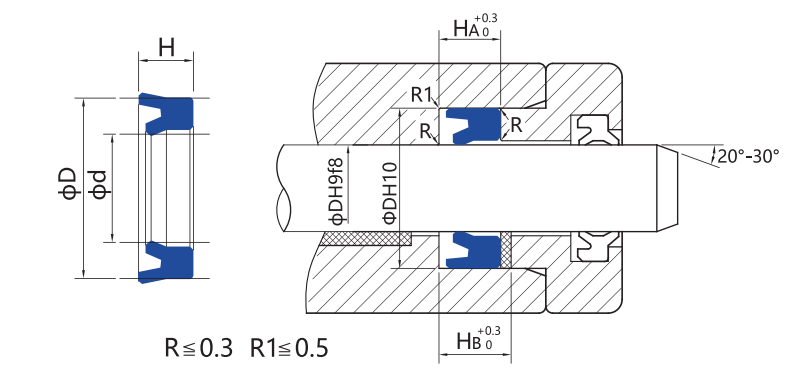

Need to know more about our IDU Rod Seals size specification ?

Item	Size	d	D	H	HA
IDU-TPU	8148	8	14	8	9	Get a Quote
IDU-TPU	10168	10	16	8	9	Get a Quote
IDU-TPU	12188	12	18	8	9	Get a Quote
IDU-TPU	14208	14	20	8	9	Get a Quote
IDU-TPU	16228	16	22	8	9	Get a Quote
IDU-TPU	162410	16	24	10	11	Get a Quote
IDU-TPU	18248	18	24	8	9	Get a Quote
IDU-TPU	182610	18	26	10	11	Get a Quote
IDU-TPU	20268	20	26	8	11	Get a Quote
IDU-TPU	202810	20	28	10	11	Get a Quote
IDU-TPU	222810	22	28	10	11	Get a Quote
IDU-TPU	223010	22	30	10	11	Get a Quote
IDU-TPU	25318	25	31	8	9	Get a Quote
IDU-TPU	253310	25	33	10	11	Get a Quote
IDU-TPU	28348	28	34	8	9	Get a Quote
IDU-TPU	283610	28	36	10	11	Get a Quote
IDU-TPU	30388	30	38	8	9	Get a Quote
IDU-TPU	303810	30	38	10	11	Get a Quote
IDU-TPU	324010	32	40	10	11	Get a Quote
IDU-TPU	344210	34	42	10	11	Get a Quote
IDU-TPU	354310	35	43	10	11	Get a Quote
IDU-TPU	364410	36	44	10	11	Get a Quote
IDU-TPU	384610	38	46	10	11	Get a Quote
IDU-TPU	404810	40	48	10	11	Get a Quote
IDU-TPU	455310	45	53	10	11	Get a Quote
IDU-TPU	505810	50	58	10	11	Get a Quote
IDU-TPU	506214	50	62	14	15	Get a Quote
IDU-TPU	526010	52	60	10	11	Get a Quote
IDU-TPU	556310	55	63	10	11	Get a Quote
IDU-TPU	556714	55	67	14	15	Get a Quote
IDU-TPU	566410	56	64	10	11	Get a Quote
IDU-TPU	566814	56	68	14	15	Get a Quote
IDU-TPU	607214	60	72	14	15	Get a Quote
IDU-TPU	637514	63	75	14	15	Get a Quote
IDU-TPU	657714	65	77	14	15	Get a Quote
IDU-TPU	708214	70	82	14	15	Get a Quote
IDU-TPU	728414	72	84	14	15	Get a Quote
IDU-TPU	758714	75	87	14	15	Get a Quote
IDU-TPU	19020618	190	206	18	19	Get a Quote
IDU-TPU	19521118	195	211	18	19	Get a Quote
IDU-TPU	20021618	200	216	18	19	Get a Quote
IDU-TPU	20522118	205	221	18	19	Get a Quote
IDU-TPU	21022618	210	226	18	19	Get a Quote
IDU-TPU	21523118	215	231	18	19	Get a Quote
IDU-TPU	22023618	220	236	18	19	Get a Quote
IDU-TPU	22524118	255	241	18	19	Get a Quote
IDU-TPU	23024618	230	246	18	19	Get a Quote
IDU-TPU	23525118	235	251	18	19	Get a Quote
IDU-TPU	24025618	240	256	18	19	Get a Quote
IDU-TPU	25026618	250	266	18	19	Get a Quote
IDU-TPU	26027618	260	276	18	19	Get a Quote
IDU-TPU	26528118	265	281	18	19	Get a Quote
IDU-TPU	27028618	270	286	18	19	Get a Quote
IDU-TPU	27929618	279	296	18	19	Get a Quote
IDU-TPU	28029618	280	296	18	19	Get a Quote
IDU-TPU	29630618	296	306	18	19	Get a Quote
IDU-TPU	29531118	295	311	18	19	Get a Quote
IDU-TPU	30031618	300	316	18	19	Get a Quote
IDU-TPU	31033424	310	334	24	25	Get a Quote
IDU-TPU	31533924	315	339	24	25	Get a Quote
IDU-TPU	32034424	320	344	24	25	Get a Quote
IDU-TPU	33035424	330	354	24	25	Get a Quote
IDU-TPU	34036424	340	364	24	25	Get a Quote
IDU-TPU	35037424	350	374	24	25	Get a Quote
IDU-TPU	36038424	360	384	24	25	Get a Quote
IDU-TPU	37039424	370	396	24	25	Get a Quote
IDU-TPU	38040424	380	404	24	25	Get a Quote
IDU-TPU	40042424	400	424	24	25	Get a Quote
IDU-TPU	42044424	420	444	24	25	Get a Quote
IDU-TPU	43045424	430	454	24	25	Get a Quote
IDU-TPU	45047424	450	474	24	25	Get a Quote
IDU-TPU	46048424	460	484	24	25	Get a Quote
IDU-TPU	46548924	465	489	24	25	Get a Quote
IDU-TPU	48050424	480	504	24	25	Get a Quote
IDU-TPU	49051424	490	514	24	25	Get a Quote
IDU-TPU	50052424	500	524	24	25	Get a Quote
IDU-TPU	809214	80	92	14	15	Get a Quote
IDU-TPU	859714	85	97	14	15	Get a Quote
IDU-TPU	869814	86	98	14	15	Get a Quote
IDU-TPU	8810014	88	100	14	15	Get a Quote
IDU-TPU	9010214	90	102	14	15	Get a Quote
IDU-TPU	9510714	95	107	14	15	Get a Quote
IDU-TPU	10011214	100	112	14	15	Get a Quote
IDU-TPU	10011618	100	116	18	19	Get a Quote
IDU-TPU	10511714	105	117	14	15	Get a Quote
IDU-TPU	10512118	105	121	18	19	Get a Quote
IDU-TPU	11012214	110	122	14	15	Get a Quote
IDU-TPU	11012618	110	126	18	19	Get a Quote
IDU-TPU	11512714	115	127	14	15	Get a Quote
IDU-TPU	11513118	115	131	18	19	Get a Quote
IDU-TPU	12013214	120	132	14	15	Get a Quote
IDU-TPU	12013618	120	136	18	19	Get a Quote
IDU-TPU	12513714	125	137	14	15	Get a Quote
IDU-TPU	12514118	125	141	18	19	Get a Quote
IDU-TPU	13014214	130	142	14	15	Get a Quote
IDU-TPU	13014618	130	146	18	19	Get a Quote
IDU-TPU	13514714	135	147	14	15	Get a Quote
IDU-TPU	13515118	135	151	18	19	Get a Quote
IDU-TPU	14015214	140	152	14	15	Get a Quote
IDU-TPU	14015618	140	156	18	19	Get a Quote
IDU-TPU	14515714	145	157	14	15	Get a Quote
IDU-TPU	14516118	145	161	18	19	Get a Quote
IDU-TPU	15016214	150	162	14	15	Get a Quote
IDU-TPU	15016618	150	166	18	19	Get a Quote
IDU-TPU	15516714	155	167	14	15	Get a Quote
IDU-TPU	15517118	155	171	18	19	Get a Quote
IDU-TPU	16017214	160	172	14	15	Get a Quote
IDU-TPU	16017618	160	176	18	19	Get a Quote
IDU-TPU	16517714	165	177	14	15	Get a Quote
IDU-TPU	16518118	165	181	18	19	Get a Quote
IDU-TPU	17018618	170	186	18	19	Get a Quote
IDU-TPU	17519118	175	191	18	19	Get a Quote
IDU-TPU	18019618	180	196	18	19	Get a Quote
IDU-TPU	18520118	185	201	18	19	Get a Quote
IDU-TPU	56058424	560	584	24	25	Get a Quote
