ODU NBR Piston Seals

products

ODU NBR Piston Seals

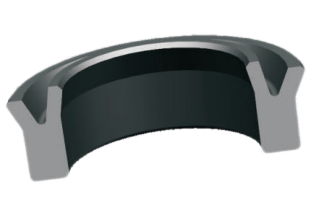

ODU NBR Piston Seals is a lip seal for pistons installed in grooves as a tight fit.

Materials Properties

Materials：NBR
Hardness：85-90 shore
Color：Black

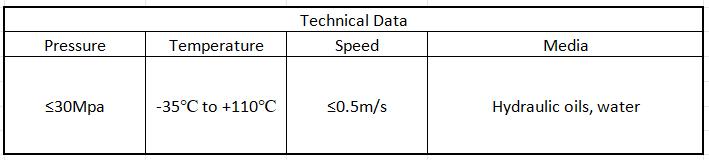

Technical Data

Advantages

Low compression set
High abrasion resistance
Easy to install

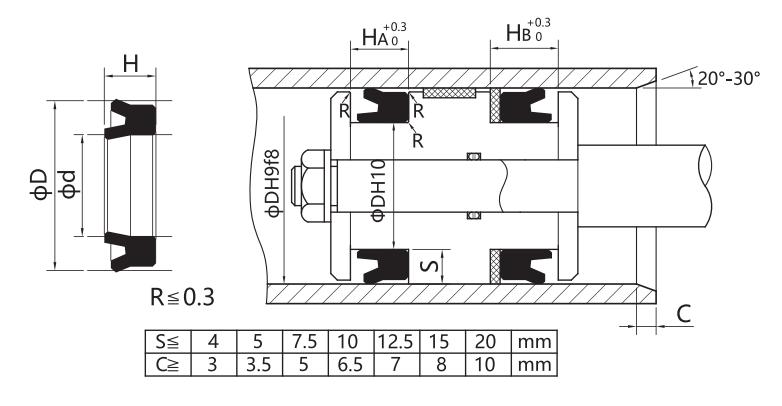

Need to know more about our ODU NBR Piston Seals size specification ?

Item	Size	D	d	H	HA
ODU	16108	16	10	8	9	Get a Quote
ODU	18128	18	12	8	9	Get a Quote
ODU	20148	20	14	8	9	Get a Quote
ODU	22168	22	16	8	9	Get a Quote
ODU	25198	25	19	8	9	Get a Quote
ODU	28228	28	22	8	9	Get a Quote
ODU	302210	30	22	10	11	Get a Quote
ODU	322410	32	24	10	11	Get a Quote
ODU	352710	35	27	10	11	Get a Quote
ODU	362810	36	28	10	11	Get a Quote
ODU	403210	40	32	10	11	Get a Quote
ODU	433510	43	35	10	11	Get a Quote
ODU	453710	45	37	10	11	Get a Quote
ODU	504210	50	42	10	11	Get a Quote
ODU	554314	55	43	14	15	Get a Quote
ODU	554710	55	47	10	11	Get a Quote
ODU	564414	56	44	14	15	Get a Quote
ODU	564810	56	48	10	11	Get a Quote
ODU	604814	60	48	14	15	Get a Quote
ODU	635114	63	51	14	15	Get a Quote
ODU	655314	65	53	14	15	Get a Quote
ODU	705814	70	58	14	15	Get a Quote
ODU	756314	75	63	14	15	Get a Quote
ODU	786614	78	66	14	15	Get a Quote
ODU	806814	80	68	14	15	Get a Quote
ODU	85X73*14	85	73	14	15	Get a Quote
ODU	907814	90	78	14	15	Get a Quote
ODU	958314	95	83	14	15	Get a Quote
ODU	1008814	100	88	14	15	Get a Quote
ODU	1008418	100	84	18	19	Get a Quote
ODU	1058918	105	89	18	19	Get a Quote
ODU	1059314	105	93	14	15	Get a Quote
ODU	1109814	110	98	14	15	Get a Quote
ODU	1109418	110	94	18	19	Get a Quote
ODU	1159918	115	99	18	19	Get a Quote
ODU	11510314	115	103	14	15	Get a Quote
ODU	12010418	120	104	18	19	Get a Quote
ODU	12010814	120	108	14	15	Get a Quote
ODU	30028418	300	284	18	19	Get a Quote
ODU	32029624	320	296	24	25	Get a Quote
ODU	12510918	125	109	18	19	Get a Quote
ODU	12511314	125	113	14	15	Get a Quote
ODU	13011418	130	114	18	19	Get a Quote
ODU	13011814	130	118	14	15	Get a Quote
ODU	13511918	135	119	18	19	Get a Quote
ODU	13512314	135	123	14	15	Get a Quote
ODU	14012418	140	124	18	19	Get a Quote
ODU	14012814	140	128	14	15	Get a Quote
ODU	14512918	145	129	18	19	Get a Quote
ODU	14513314	145	133	14	15	Get a Quote
ODU	15013418	150	134	18	19	Get a Quote
ODU	15013814	150	138	14	15	Get a Quote
ODU	15513918	155	139	18	19	Get a Quote
ODU	15514314	155	143	14	15	Get a Quote
ODU	16014418	160	144	18	19	Get a Quote
ODU	160X148X14	160	148	14	15	Get a Quote
ODU	16514918	165	149	18	19	Get a Quote
ODU	16515314	165	153	14	15	Get a Quote
ODU	170*154X18	170	154	18	19	Get a Quote
ODU	17515918	175	159	18	19	Get a Quote
ODU	18016418	180	164	18	19	Get a Quote
ODU	18516918	185	169	18	19	Get a Quote
ODU	19017418	190	174	18	19	Get a Quote
ODU	19517918	195	179	18	19	Get a Quote
ODU	20018418	200	184	18	19	Get a Quote
ODU	21019418	210	194	18	19	Get a Quote
ODU	21519918	215	199	18	19	Get a Quote
ODU	22020418	220	204	18	19	Get a Quote
ODU	22520918	225	209	18	19	Get a Quote
ODU	23021418	230	214	18	19	Get a Quote
ODU	24022418	240	224	18	19	Get a Quote
ODU	24522918	245	229	18	19	Get a Quote
ODU	25023418	250	234	18	19	Get a Quote
ODU	26024418	260	244	18	19	Get a Quote
ODU	26524918	265	249	18	19	Get a Quote
ODU	27025418	270	254	18	19	Get a Quote
ODU	28026418	280	264	18	19	Get a Quote
ODU	29027418	290	274	18	19	Get a Quote
