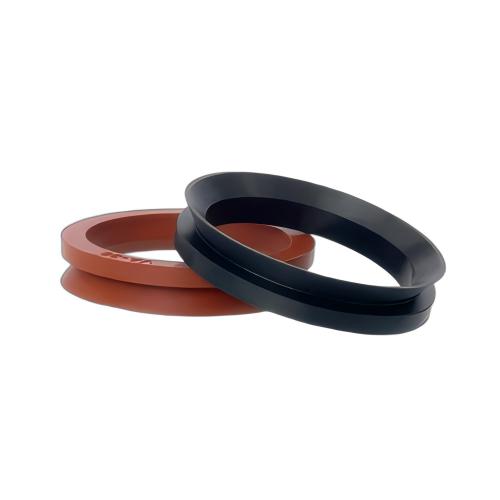

V-Rings are available in four standard configurations, VA, VS, VB, and VL, and are axially acting rubber seals. Unlike general rotary oil seals, the V-ring relies on its elastic sealing lip to form an axial seal. The sealing lip has good mobility and adaptability, so compared with other seals, it can compensate for larger deviations and angular deviations. v-rings can be used on rotary shafts and bearing cover surfaces for pressureless axial sealing, In order to prevent the intrusion of contamination and the leakage of internal grease, the intermediate connection ensures that the sealing lip exerts a slight pressure on the sealed surface to achieve a long-lasting and effective seal.
Explore more about our VA-RING detailed specifications ?
| VA Size |
Shaft Diameter |
d (mm) |
D(mm) |
H(mm) |
Add to Cart |
| VA-003 |
2.70–3.50 |
2.5 |
5.5 |
3 |
|
| VA-004 |
3.50–4.50 |
3.2 |
7.2 |
3.7 |
|
| VA-005 |
4.50–5.50 |
4 |
8 |
3.7 |
|
| VA-006 |
5.50–6.50 |
5 |
9 |
3.7 |
|
| VA-007 |
6.50–8.00 |
6 |
10 |
3.7 |
|
| VA-008 |
8.00–9.50 |
7 |
11 |
3.7 |
|
| VA-010 |
9.50–11.50 |
9 |
15 |
5.5 |
|
| VA-012 |
11.50–12.50 |
10.5 |
16.5 |
5.5 |
|
| VA-013 |
12.50–13.50 |
11.7 |
17.5 |
5.5 |
|
| VA-014 |
13.50–15.50 |
12.5 |
18.5 |
5.5 |
|
| VA-016 |
15.50–17.50 |
14 |
20 |
5.5 |
|
| VA-018 |
17.50–19.00 |
16 |
22 |
5.5 |
|
| VA-020 |
19.00–21.00 |
18 |
26 |
7.5 |
|
| VA-022 |
21.00–24.00 |
20 |
28 |
7.5 |
|
| VA-025 |
24.00–27.00 |
22 |
30 |
7.5 |
|
| VA-028 |
27.00–29.00 |
25 |
33 |
7.5 |
|
| VA-030 |
29.00–31.00 |
27 |
35 |
7.5 |
|
| VA-032 |
31.00–33.00 |
29 |
37 |
7.5 |
|
| VA-035 |
33.00–36.00 |
31 |
39 |
7.5 |
|
| VA-038 |
36.00–38.00 |
34 |
42 |
7.5 |
|
| VA-040 |
38.00–43.00 |
36 |
46 |
9 |
|
| VA-045 |
43.00–48.00 |
40 |
50 |
9 |
|
| VA-050 |
48.00–53.00 |
45 |
55 |
9 |
|
| VA-055 |
53.00–58.00 |
49 |
59 |
9 |
|
| VA-060 |
58.00–63.00 |
54 |
64 |
9 |
|
| VA-065 |
63.00–68.00 |
58 |
68 |
9 |
|
| VA-070 |
68.00–73.00 |
63 |
75 |
11 |
|
| VA-075 |
73.00–78.00 |
67 |
79 |
11 |
|
| VA-080 |
78.00–83.00 |
72 |
84 |
11 |
|
| VA-085 |
83.00–88.00 |
76 |
88 |
11 |
|
| VA-090 |
88.00–93.00 |
81 |
93 |
11 |
|
| VA-095 |
93.00–98.00 |
85 |
97 |
11 |
|
| VA-100 |
98.00–105.00 |
90 |
102 |
11 |
|
| VA-110 |
105.00–115.00 |
99 |
113 |
12.8 |
|
| VA-120 |
115.00–125.00 |
108 |
122 |
12.8 |
|
| VA-130 |
125.00–135.00 |
117 |
131 |
12.8 |
|
| VA-140 |
135.00–145.00 |
126 |
140 |
12.8 |
|
| VA-150 |
145.00–155.00 |
135 |
149 |
12.8 |
|
| VA-160 |
155.00–165.00 |
144 |
160 |
14.5 |
|
| VA-170 |
165.00–175.00 |
153 |
169 |
14.5 |
|
| VA-180 |
175.00–185.00 |
162 |
178 |
14.5 |
|
| VA-190 |
185.00–195.00 |
171 |
187 |
14.5 |
|
| VA-199 |
195.00–210.00 |
180 |
196 |
14.5 |
|
| VA-200 |
190.00–210.00 |
180 |
210 |
25 |
|
| VA-220 |
210.00–235.00 |
198 |
228 |
25 |
|
| VA-250 |
235.00–265.00 |
225 |
255 |
25 |
|
| VA-275 |
265.00–290.00 |
247 |
277 |
25 |
|
| VA-300 |
290.00–310.00 |
270 |
300 |
25 |
|
| VA-325 |
310.00–335.00 |
292 |
322 |
25 |
|
| VA-350 |
335.00–365.00 |
315 |
345 |
25 |
|
| VA-375 |
365.00–390.00 |
337 |
367 |
25 |
|
| VA-400 |
390.00–430.00 |
360 |
390 |
25 |
|
| VA-450 |
430.00–480.00 |
405 |
435 |
25 |
|
| VA-500 |
480.00–530.00 |
450 |
480 |
25 |
|
| VA-550 |
530.00–580.00 |
495 |
525 |
25 |
|
| VA-600 |
580.00–630.00 |
540 |
570 |
25 |
|
| VA-650 |
630.00–665.00 |
600 |
630 |
25 |
|
| VA-700 |
665.00–705.00 |
630 |
660 |
25 |
|
| VA-725 |
705.00–745.00 |
670 |
700 |
25 |
|
| VA-750 |
745.00–785.00 |
705 |
735 |
25 |
|
| VA-800 |
785.00–830.00 |
745 |
775 |
25 |
|
| VA-850 |
830.00–875.00 |
785 |
815 |
25 |
|
| VA-900 |
875.00–920.00 |
825 |
855 |
25 |
|
| VA-950 |
920.00–965.00 |
865 |
895 |
25 |
|
| VA-1000 |
965.00–1015.00 |
910 |
940 |
25 |
|
| VA-1100 |
1065.00–1115.00 |
1000 |
1030 |
25 |
|
| VA-1150 |
1115.00–1165.00 |
1045 |
1075 |
25 |
|
| VA-1200 |
1165.00–1215.00 |
1090 |
1120 |
25 |
|
| VA-1250 |
1215.00–1270.00 |
1135 |
1165 |
25 |
|
| VA-1300 |
1270.00–1320.00 |
1180 |
1210 |
25 |
|
| VA-1350 |
1320.00–1370.00 |
1225 |
1255 |
25 |
|
| VA-1400 |
1370.00–1420.00 |
1270 |
1300 |
25 |
|
| VA-1450 |
1420.00–1470.00 |
1315 |
1345 |
25 |
|
| VA-1500 |
1470.00–1520.00 |
1360 |
1390 |
25 |
|
| VA-1550 |
1520.00–1570.00 |
1405 |
1435 |
25 |
|
| VA-1600 |
1570.00–1620.00 |
1450 |
1480 |
25 |
|
| VA-1650 |
1620.00–1670.00 |
1495 |
1525 |
25 |
|
| VA-1700 |
1670.00–1720.00 |
1540 |
1570 |
25 |
|
| VA-1750 |
1720.00–1770.00 |
1585 |
1615 |
25 |
|
| VA-1800 |
1770.00–1820.00 |
1630 |
1660 |
25 |
|
| VA-1850 |
1820.00–1870.00 |
1675 |
1705 |
25 |
|
| VA-1900 |
1870.00–1920.00 |
1720 |
1750 |
25 |
|
| VA-1950 |
1920.00–1970.00 |
1765 |
1795 |
25 |
|
| VA-2000 |
1970.00–2020.00 |
1810 |
1840 |
25 |
|
Material
Adopting high quality rubber materials, such as NBR, FKM, EPDM, etc., with good oil resistance, corrosion resistance and abrasion resistance.
Strict quality control
our VA-RING undergo strict quality testing to ensure that each product meets high quality standards.
Customised service
We can provide customised VA-RING solutions according to the specific needs of our customers to meet the special requirements of different customers.
Good price/performance ratio
we are committed to providing customers with cost-effective products, and reduce costs for customers under the premise of quality assurance.
Fast delivery
We have an efficient production and supply chain management system to ensure that our customers receive the products they need in the shortest possible time.
Application areas:
Mechanical equipment: e.g. pumps, compressors, gearboxes, etc.
Automotive industry: used in engine, transmission and other parts of the seal.
Aerospace: play an important role in various rotating parts of aircraft.
Chemical industry: for sealing various chemical equipment.
Installation and Maintenance Recommendations:
Before installing the VA-RING, ensure that the shaft surface is clean, smooth and free of burrs and scratches.
Follow the correct installation method to avoid damaging the water seal.
Regularly check the working condition of the water seal and replace it in time if it is worn or damaged.
