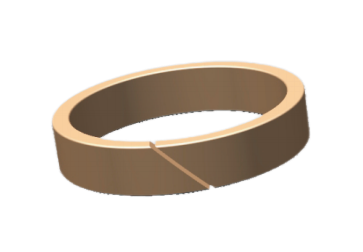

Wear Ring

Wear Ring is a lip seal for hydraulic cylinder piston rods installed in grooves for a close fit.

Materials Properties

Materials：Phenolic Resin
Color：Yellow

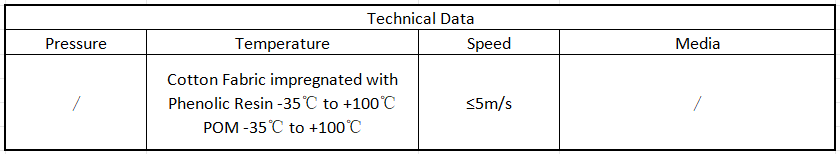

Technical Data

Advantages

High quatity with large size stock
Easy to install

Need to know more about our Wear Ring size specification ?

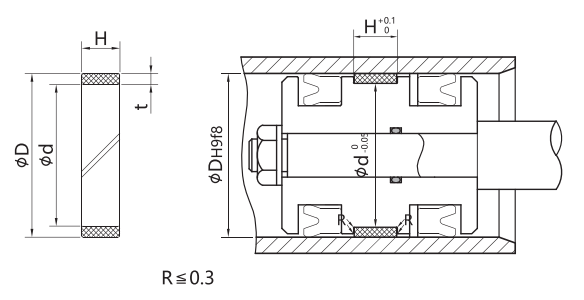

Item	Size	D	d	t	H
Wear Ring	35309.7	35	30	2.5	9.7	Get a Quote
Wear Ring	353015	35	30	2.5	15	Get a Quote
Wear Ring	353020	35	30	2.5	20	Get a Quote
Wear Ring	353025	35	30	2.5	25	Get a Quote
Wear Ring	353030	35	30	2.5	30	Get a Quote
Wear Ring	353115	35	31	2	15	Get a Quote
Wear Ring	363225	36	32	2	25	Get a Quote
Wear Ring	37329.7	37	32	2.5	9.7	Get a Quote
Wear Ring	40359.7	40	35	2.5	9.7	Get a Quote
Wear Ring	403512.5	40	35	2.5	12.5	Get a Quote
Wear Ring	403515	40	35	2.5	15	Get a Quote
Wear Ring	403520	40	35	2.5	20	Get a Quote
Wear Ring	41365.5	41	36	2.5	5.5	Get a Quote
Wear Ring	41369.7	41	36	2.5	9.7	Get a Quote
Wear Ring	453912	45	39	3	12	Get a Quote
Wear Ring	453912.5	45	39	3	12.5	Get a Quote
Wear Ring	453915	45	39	3	15	Get a Quote
Wear Ring	453920	45	39	3	20	Get a Quote
Wear Ring	45405.6	45	40	2.5	5.6	Get a Quote
Wear Ring	45409.7	45	40	2.5	9.7	Get a Quote
Wear Ring	454012	45	40	2.5	12	Get a Quote
Wear Ring	454015	45	40	2.5	15	Get a Quote
Wear Ring	454020	45	40	2.5	20	Get a Quote
Wear Ring	454025	45	40	2.5	25	Get a Quote
Wear Ring	454030	45	40	2.5	30	Get a Quote
Wear Ring	46429.7	46	42	2	9.7	Get a Quote
Wear Ring	50438	50	43	3.5	8	Get a Quote
Wear Ring	50448	50	44	3	8	Get a Quote
Wear Ring	504415	50	44	3	15	Get a Quote
Wear Ring	504420	50	44	3	20	Get a Quote
Wear Ring	50456.1	50	45	2.5	6.1	Get a Quote
Wear Ring	50458	50	45	2.5	8	Get a Quote
Wear Ring	50459.7	50	45	2.5	9.7	Get a Quote
Wear Ring	504512	50	45	2.5	12	Get a Quote
Wear Ring	504515	50	45	2.5	15	Get a Quote
Wear Ring	504520	50	45	2.5	20	Get a Quote
Wear Ring	504525	50	45	2.5	25	Get a Quote
Wear Ring	504527.8	50	45	2.5	27.8	Get a Quote
Wear Ring	504530	50	45	2.5	30	Get a Quote
Wear Ring	504535	50	45	2.5	35	Get a Quote
Wear Ring	504615	50	46	2	15	Get a Quote
Wear Ring	544815	54	48	3	15	Get a Quote
Wear Ring	55458	55	45	5	8	Get a Quote
Wear Ring	55508	55	50	2.5	8	Get a Quote
Wear Ring	55509.7	55	50	2.5	9.7	Get a Quote
Wear Ring	555012.5	55	50	2.5	12.5	Get a Quote
Wear Ring	555015	55	50	2.5	15	Get a Quote
Wear Ring	555020	55	50	2.5	20	Get a Quote
Wear Ring	555025	55	50	2.5	25	Get a Quote
Wear Ring	555030	55	50	2.5	30	Get a Quote
Wear Ring	55518	55	51	2	8	Get a Quote
Wear Ring	565025	56	50	3	25	Get a Quote
Wear Ring	595315	59	53	3	15	Get a Quote
Wear Ring	60548	60	54	3	8	Get a Quote
Wear Ring	605415	60	54	3	15	Get a Quote
Wear Ring	605420	60	54	3	20	Get a Quote
Wear Ring	60556.1	60	55	2.5	6.1	Get a Quote
Wear Ring	60558	60	55	2.5	8	Get a Quote
Wear Ring	60559.7	60	55	2.5	9.7	Get a Quote
Wear Ring	605512	60	55	2.5	12	Get a Quote
Wear Ring	605515	60	55	2.5	15	Get a Quote
Wear Ring	605520	60	55	2.5	20	Get a Quote
Wear Ring	605525	60	55	2.5	25	Get a Quote
Wear Ring	605530	60	55	2.5	30	Get a Quote
Wear Ring	615620	61	56	2.5	20	Get a Quote
Wear Ring	625512	62	55	3.5	12	Get a Quote
Wear Ring	63585.6	63	58	2.5	5.6	Get a Quote
Wear Ring	63586.1	63	58	2.5	6.1	Get a Quote
Wear Ring	63588	63	58	2.5	8	Get a Quote
Wear Ring	63589.7	63	58	2.5	9.7	Get a Quote
Wear Ring	635812	63	58	2.5	12	Get a Quote
Wear Ring	635815	63	58	2.5	15	Get a Quote
Wear Ring	635820	63	58	2.5	20	Get a Quote
Wear Ring	635825	63	58	2.5	25	Get a Quote
Wear Ring	64609.7	64	60	2	9.7	Get a Quote
Wear Ring	65559.7	65	55	5	9.7	Get a Quote
Wear Ring	65589.7	65	58	3.5	9.7	Get a Quote
Wear Ring	6558.416.3	65	58.4	3.3	16.3	Get a Quote
Wear Ring	65599.7	65	59	3	9.7	Get a Quote
Wear Ring	655915	65	59	3	15	Get a Quote
Wear Ring	655920	65	59	3	20	Get a Quote
Wear Ring	65605.5	65	60	2.5	5.5	Get a Quote
Wear Ring	65606.1	65	60	2.5	6.1	Get a Quote
Wear Ring	65608	65	60	2.5	8	Get a Quote
Wear Ring	65609.7	65	60	2.5	9.7	Get a Quote
Wear Ring	656012	65	60	2.5	12	Get a Quote
Wear Ring	656015	65	60	2.5	15	Get a Quote
Wear Ring	656020	65	60	2.5	20	Get a Quote
Wear Ring	656025	65	60	2.5	25	Get a Quote
Wear Ring	656030	65	60	2.5	30	Get a Quote
Wear Ring	68639.7	68	63	2.5	9.7	Get a Quote
Wear Ring	686315	68	63	2.5	15	Get a Quote
Wear Ring	686320	68	63	2.5	20	Get a Quote
Wear Ring	70608	70	60	5	8	Get a Quote
Wear Ring	706212	70	62	4	12	Get a Quote
Wear Ring	706324.5	70	63	3.5	24.5	Get a Quote
Wear Ring	706412.5	70	64	3	12.5	Get a Quote
Wear Ring	706415	70	64	3	15	Get a Quote
Wear Ring	706420	70	64	3	20	Get a Quote
Wear Ring	70655.5	70	65	2.5	5.5	Get a Quote
Wear Ring	70656.1	70	65	2.5	6.1	Get a Quote
Wear Ring	70657	70	65	2.5	7	Get a Quote
Wear Ring	70658	70	65	2.5	8	Get a Quote
Wear Ring	70659.7	70	65	2.5	9.7	Get a Quote
Wear Ring	706512	70	65	2.5	12	Get a Quote
Wear Ring	706515	70	65	2.5	15	Get a Quote
Wear Ring	706520	70	65	2.5	20	Get a Quote
Wear Ring	706525	70	65	2.5	25	Get a Quote
Wear Ring	70669.7	70	66	2	9.7	Get a Quote
Wear Ring	737045.5	73	70	1.5	45.5	Get a Quote
Wear Ring	756712.5	75	67	4	12.5	Get a Quote
Wear Ring	756715	75	67	4	15	Get a Quote
Wear Ring	756825	75	68	3.5	25	Get a Quote
Wear Ring	75699.7	75	69	3	9.7	Get a Quote
Wear Ring	756912	75	69	3	12	Get a Quote
Wear Ring	756912.5	75	69	3	12.5	Get a Quote
Wear Ring	756915	75	69	3	15	Get a Quote
Wear Ring	756920	75	69	3	20	Get a Quote
Wear Ring	756925	75	69	3	25	Get a Quote
Wear Ring	756930	75	69	3	30	Get a Quote
Wear Ring	75705.1	75	70	2.5	5.1	Get a Quote
Wear Ring	75705.5	75	70	2.5	5.5	Get a Quote
Wear Ring	75706.1	75	70	2.5	6.1	Get a Quote
Wear Ring	75708	75	70	2.5	8	Get a Quote
Wear Ring	75709.7	75	70	2.5	9.7	Get a Quote
Wear Ring	757012	75	70	2.5	12	Get a Quote
Wear Ring	757015	75	70	2.5	15	Get a Quote
Wear Ring	757020	75	70	2.5	20	Get a Quote
Wear Ring	757025	75	70	2.5	25	Get a Quote
Wear Ring	757030	75	70	2.5	30	Get a Quote
Wear Ring	757040	75	70	2.5	40	Get a Quote
Wear Ring	757050	75	70	2.5	50	Get a Quote
Wear Ring	807212.5	80	72	4	12.5	Get a Quote
Wear Ring	100929.7	100	92	4	9.7	Get a Quote
Wear Ring	1009215	100	92	4	15	Get a Quote
Wear Ring	1009230	100	92	4	30	Get a Quote
Wear Ring	10093.416.3	100	93.4	3.3	16.3	Get a Quote
Wear Ring	100946.1	100	94	3	6.1	Get a Quote
Wear Ring	100949	100	94	3	9	Get a Quote
Wear Ring	100949.7	100	94	3	9.7	Get a Quote
Wear Ring	1009411	100	94	3	11	Get a Quote
Wear Ring	1009412.5	100	94	3	12.5	Get a Quote
Wear Ring	1009415	100	94	3	15	Get a Quote
Wear Ring	1009420	100	94	3	20	Get a Quote
Wear Ring	1009422	100	94	3	22	Get a Quote
Wear Ring	1009425	100	94	3	25	Get a Quote
Wear Ring	1009427	100	94	3	27	Get a Quote
Wear Ring	1009430	100	94	3	30	Get a Quote
Wear Ring	100956.1	100		2.5	6.1	Get a Quote
Wear Ring	100958	100	95	2.5	8	Get a Quote
Wear Ring	100959.7	100	95	2.5	9.7	Get a Quote
Wear Ring	1009512.5	100	95	2.5	12.5	Get a Quote
Wear Ring	1009515	100	95	2.5	15	Get a Quote
Wear Ring	1009520	100	95	2.5	20	Get a Quote
Wear Ring	1009525	100	95	2.5	25	Get a Quote
Wear Ring	1009530	100	95	2.5	30	Get a Quote
Wear Ring	10410015	104	100	2	15	Get a Quote
Wear Ring	105969.7	105	96	4.5	9.7	Get a Quote
Wear Ring	1059612.5	105	96	4.5	12.5	Get a Quote
Wear Ring	1059625	105	96	4.5	25	Get a Quote
Wear Ring	1059712.5	105	97	4	12.5	Get a Quote
Wear Ring	1059715	105	97	4	15	Get a Quote
Wear Ring	1059912.5	105	99	3	12.5	Get a Quote
Wear Ring	1059915	105	99	3	15	Get a Quote
Wear Ring	1059920	105	99	3	20	Get a Quote
Wear Ring	1059925	105	99	3	25	Get a Quote
Wear Ring	1059930	105	99	3	30	Get a Quote
Wear Ring	1051006.1	105	100	2.5	6.1	Get a Quote
Wear Ring	1051008	105	100	2.5	8	Get a Quote
Wear Ring	1051009.7	105	100	2.5	9.7	Get a Quote
Wear Ring	10510012.5	105	100	2.5	12.5	Get a Quote
Wear Ring	10510015	105	100	2.5	15	Get a Quote
Wear Ring	10510020	105	100	2.5	20	Get a Quote
Wear Ring	10510025	105	100	2.5	25	Get a Quote
Wear Ring	10510030	105	100	2.5	30	Get a Quote
Wear Ring	10810320	108	103	2.5	20	Get a Quote
Wear Ring	10810420	108	104	2	20	Get a Quote
Wear Ring	11010015	110	100	5	15	Get a Quote
Wear Ring	11010024	110	100	5	24	Get a Quote
Wear Ring	1101016.1	110	101	4.5	6.1	Get a Quote
Wear Ring	1101019.7	110	101	4.5	9.7	Get a Quote
Wear Ring	11010112.5	110	101	4.5	12.5	Get a Quote
Wear Ring	11010115	110	101	4.5	15	Get a Quote
Wear Ring	11010127.5	110	101	4.5	27.5	Get a Quote
Wear Ring	1101028	110	102	4	8	Get a Quote
Wear Ring	11010212.5	110	102	4	12.5	Get a Quote
Wear Ring	11010215	110	102	4	15	Get a Quote
Wear Ring	11010220	110	102	4	20	Get a Quote
Wear Ring	11010225	110	102	4	25	Get a Quote
Wear Ring	11010335	110	103	3.5	35	Get a Quote
Wear Ring	1101046.1	110	104	3	6.1	Get a Quote
Wear Ring	1101048	110	104	3	8	Get a Quote
Wear Ring	11010411	110	104	3	11	Get a Quote
Wear Ring	11010412	110	104	3	12	Get a Quote
Wear Ring	11010415	110	104	3	15	Get a Quote
Wear Ring	11010420	110	104	3	20	Get a Quote
Wear Ring	11010422.5	110	104	3	22.5	Get a Quote
Wear Ring	11010425	110	104	3	25	Get a Quote
Wear Ring	11010427.5	110	104	3	27.5	Get a Quote
Wear Ring	11010430	110	104	3	30	Get a Quote
Wear Ring	11010435	110	104	3	35	Get a Quote
Wear Ring	11010440	110	104	3	40	Get a Quote
Wear Ring	1101054	110	105	2.5	4	Get a Quote
Wear Ring	1101056.1	110	105	2.5	6.1	Get a Quote
Wear Ring	1101058	110	105	2.5	8	Get a Quote
Wear Ring	1101059.7	110	105	2.5	9.7	Get a Quote
Wear Ring	11010512.5	110	105	2.5	12.5	Get a Quote
Wear Ring	11010515	110	105	2.5	15	Get a Quote
Wear Ring	11010520	110	105	2.5	20	Get a Quote
Wear Ring	11010525	110	105	2.5	25	Get a Quote
Wear Ring	11010526	110	105	2.5	26	Get a Quote
Wear Ring	11010530	110	105	2.5	30	Get a Quote
Wear Ring	11510515	115	105	5	15	Get a Quote
Wear Ring	11510520	115	105	5	20	Get a Quote
Wear Ring	1151066.1	115	106	4.5	6.1	Get a Quote
Wear Ring	1151069.7	115	106	4.5	9.7	Get a Quote
Wear Ring	11510612.5	115	106	4.5	12.5	Get a Quote
Wear Ring	11510615	115	106	4.5	15	Get a Quote
Wear Ring	1151078	115	107	4	8	Get a Quote
Wear Ring	11510712	115	107	4	12	Get a Quote
Wear Ring	11510715	115	107	4	15	Get a Quote
Wear Ring	11510912.5	115	109	3	12.5	Get a Quote
Wear Ring	11510915	115	109	3	15	Get a Quote
Wear Ring	11510920	115	109	3	20	Get a Quote
Wear Ring	11510925	115	109	3	25	Get a Quote
Wear Ring	11510930	115	109	3	30	Get a Quote
Wear Ring	11510940	115	109	3	40	Get a Quote
Wear Ring	1151106.1	115	110	2.5	6.1	Get a Quote
Wear Ring	1151108	115	110	2.5	8	Get a Quote
Wear Ring	1151109.7	115	110	2.5	9.7	Get a Quote
Wear Ring	11511012.5	115	110	2.5	12.5	Get a Quote
Wear Ring	11511015	115	110	2.5	15	Get a Quote
Wear Ring	11511020	115	110	2.5	20	Get a Quote
Wear Ring	11511025	115	110	2.5	25	Get a Quote
Wear Ring	11511030	115	110	2.5	30	Get a Quote
Wear Ring	11511035	115	110	2.5	35	Get a Quote
Wear Ring	11611030	116	110	3	30	Get a Quote
Wear Ring	11611055	116	110	3	55	Get a Quote
Wear Ring	11810815	118	108	5	15	Get a Quote
Wear Ring	12010420	120	104	8	20	Get a Quote
Wear Ring	12011015	120	110	5	15	Get a Quote
Wear Ring	1201116.1	120	111	4.5	6.1	Get a Quote
Wear Ring	1201119.7	120	111	4.5	9.7	Get a Quote
Wear Ring	12011115	120	111	4.5	15	Get a Quote
Wear Ring	1201126.1	120	112	4	6.1	Get a Quote
Wear Ring	1201128	120	112	4	8	Get a Quote
Wear Ring	12011215	120	112	4	15	Get a Quote
Wear Ring	12011320	120	113	3.5	20	Get a Quote
Wear Ring	12011330	120	113	3.5	30	Get a Quote
Wear Ring	1201146.1	120	114	3	6.1	Get a Quote
Wear Ring	12011411	120	114	3	11	Get a Quote
Wear Ring	12011412	120	114	3	12	Get a Quote
Wear Ring	12011415	120	114	3	15	Get a Quote
Wear Ring	12011416	120	114	3	16	Get a Quote
Wear Ring	12011420	120	114	3	20	Get a Quote
Wear Ring	12011422.5	120	114	3	22.5	Get a Quote
Wear Ring	12011425	120	114	3	25	Get a Quote
Wear Ring	12011427.5	120	114	3	27.5	Get a Quote
Wear Ring	12011430	120	114	3	30	Get a Quote
Wear Ring	12011435	120	114	3	35	Get a Quote
Wear Ring	12011440	120	114	3	40	Get a Quote
Wear Ring	1201156.1	120	115	2.5	6.1	Get a Quote
Wear Ring	1201158	120	115	2.5	8	Get a Quote
Wear Ring	1201159.7	120	115	2.5	9.7	Get a Quote
Wear Ring	12011512.5	120	115	2.5	12.5	Get a Quote
Wear Ring	14013440	140	134	3	40	Get a Quote
Wear Ring	14013450	140	134	3	50	Get a Quote
Wear Ring	1401358	140	135	2.5	8	Get a Quote
Wear Ring	1401359.7	140	135	2.5	9.7	Get a Quote
Wear Ring	14013512	140	135	2.5	12	Get a Quote
Wear Ring	14013512.5	140	135	2.5	12.5	Get a Quote
Wear Ring	14013515	140	135	2.5	15	Get a Quote
Wear Ring	14013520	140	135	2.5	20	Get a Quote
Wear Ring	14013525	140	135	2.5	25	Get a Quote
Wear Ring	14013530	140	135	2.5	30	Get a Quote
Wear Ring	14013535	140	135	2.5	35	Get a Quote
Wear Ring	14013550	140	135	2.5	50	Get a Quote
Wear Ring	14513312.5	145	133	6	12.5	Get a Quote
Wear Ring	14513315	145	133	6	15	Get a Quote
Wear Ring	14513715	145	137	4	15	Get a Quote
Wear Ring	14513720	145	137	4	20	Get a Quote
Wear Ring	1451389.7	145	138	3.5	9.7	Get a Quote
Wear Ring	14513812.5	145	138	3.5	12.5	Get a Quote
Wear Ring	14513815	145	138	3.5	15	Get a Quote
Wear Ring	14513817.5	145	138	3.5	17.5	Get a Quote
Wear Ring	14513820	145	138	3.5	20	Get a Quote
Wear Ring	14513825	145	138	3.5	25	Get a Quote
Wear Ring	14513830	145	138	3.5	30	Get a Quote
Wear Ring	14513835	145	138	3.5	35	Get a Quote
Wear Ring	14513840	145	138	3.5	40	Get a Quote
Wear Ring	14513850	145	138	3.5	50	Get a Quote
Wear Ring	14513925	145	139	3	25	Get a Quote
Wear Ring	1451408	145	140	2.5	8	Get a Quote
Wear Ring	1451409.7	145	140	2.5	9.7	Get a Quote
Wear Ring	14514012.5	145	140	2.5	12.5	Get a Quote
Wear Ring	14514015	145	140	2.5	15	Get a Quote
Wear Ring	14514020	145	140	2.5	20	Get a Quote
Wear Ring	14514025	145	140	2.5	25	Get a Quote
Wear Ring	14514030	145	140	2.5	30	Get a Quote
Wear Ring	14514035	145	140	2.5	35	Get a Quote
Wear Ring	14514040	145	140	2.5	40	Get a Quote
Wear Ring	14514050	145	140	2.5	50	Get a Quote
Wear Ring	14714015	147	140	3.5	15	Get a Quote
Wear Ring	15013512.5	150	135	7.5	12.5	Get a Quote
Wear Ring	15013812.5	150	138	6	12.5	Get a Quote
Wear Ring	15013815	150	138	6	15	Get a Quote
Wear Ring	15013817.5	150	138	6	17.5	Get a Quote
Wear Ring	1501428	150	142	4	8	Get a Quote
Wear Ring	1501429	150	142	4	9	Get a Quote
Wear Ring	15014215	150	142	4	15	Get a Quote
Wear Ring	15014220	150	142	4	20	Get a Quote
Wear Ring	15014225	150	142	4	25	Get a Quote
Wear Ring	15014240	150	142	4	40	Get a Quote
Wear Ring	15014315	150	143	3.5	15	Get a Quote
Wear Ring	15014317.5	150	143	3.5	17.5	Get a Quote
Wear Ring	15014320	150	143	3.5	20	Get a Quote
Wear Ring	15014321	150	143	3.5	21	Get a Quote
Wear Ring	15014322	150	143	3.5	22	Get a Quote
Wear Ring	15014325	150	143	3.5	25	Get a Quote
Wear Ring	15014330	150	143	3.5	30	Get a Quote
Wear Ring	15014335	150	143	3.5	35	Get a Quote
Wear Ring	15014340	150	143	3.5	40	Get a Quote
Wear Ring	15014345	150	143	3.5	45	Get a Quote
Wear Ring	15014350	150	143	3.5	50	Get a Quote
Wear Ring	1501446.1	150	144	3	6.1	Get a Quote
Wear Ring	15014415	150	144	3	15	Get a Quote
Wear Ring	15014420	150	144	3	20	Get a Quote
Wear Ring	15014425	150	144	3	25	Get a Quote
Wear Ring	15014435	150	144	3	35	Get a Quote
Wear Ring	15014440	150	144	3	40	Get a Quote
Wear Ring	15014450	150	144	3	50	Get a Quote
Wear Ring	1501458	150	145	2.5	8	Get a Quote
Wear Ring	1501459.7	150	145	2.5	9.7	Get a Quote
Wear Ring	15014512.5	150	145	2.5	12.5	Get a Quote
Wear Ring	15014515	150	145	2.5	15	Get a Quote
Wear Ring	15014520	150	145	2.5	20	Get a Quote
Wear Ring	15014525	150	145	2.5	25	Get a Quote
Wear Ring	15014535	150	145	2.5	35	Get a Quote
Wear Ring	15014540	150	145	2.5	40	Get a Quote
Wear Ring	15014550	150	145	2.5	50	Get a Quote
Wear Ring	15114515	151	145	3	15	Get a Quote
Wear Ring	15214516	152	145	3.5	16	Get a Quote
Wear Ring	15514925	155	149	3	25	Get a Quote
Wear Ring	1551508	155	150	2.5	8	Get a Quote
Wear Ring	1551509.7	155	150	2.5	9.7	Get a Quote
Wear Ring	15515015	155	150	2.5	15	Get a Quote
Wear Ring	15515020	155	150	2.5	20	Get a Quote
Wear Ring	15515025	155	150	2.5	25	Get a Quote
Wear Ring	15515030	155	150	2.5	30	Get a Quote
Wear Ring	15615015	156	150	3	15	Get a Quote
Wear Ring	16014812.5	160	148	6	12.5	Get a Quote
Wear Ring	16014815	160	148	6	15	Get a Quote
Wear Ring	16014817.5	160	148	6	17.5	Get a Quote
Wear Ring	16014820	160	148	6	20	Get a Quote
Wear Ring	16014822	160	148	6	22	Get a Quote
Wear Ring	16014825	160	148	6	25	Get a Quote
Wear Ring	16015020	160	150	5	20	Get a Quote
Wear Ring	1601529	160	152	4	9	Get a Quote
Wear Ring	16015225	160	152	4	25	Get a Quote
Wear Ring	16015235	160	152	4	35	Get a Quote
Wear Ring	16015315	160	153	3.5	15	Get a Quote
Wear Ring	16015320	160	153	3.5	20	Get a Quote
Wear Ring	16015321	160	153	3.5	21	Get a Quote
Wear Ring	16015325	160	153	3.5	25	Get a Quote
Wear Ring	16015330	160	153	3.5	30	Get a Quote
Wear Ring	16015335	160	153	3.5	35	Get a Quote
Wear Ring	16015340	160	153	3.5	40	Get a Quote
Wear Ring	16015345	160	153	3.5	45	Get a Quote
Wear Ring	16015415	160	154	3	15	Get a Quote
Wear Ring	16015420	160	154	3	20	Get a Quote
Wear Ring	16015440	160	154	3	40	Get a Quote
Wear Ring	16015450	160	154	3	50	Get a Quote
Wear Ring	1601558	160	155	2.5	8	Get a Quote
Wear Ring	1601559.7	160	155	2.5	9.7	Get a Quote
Wear Ring	16015512.5	160	155	2.5	12.5	Get a Quote
Wear Ring	16015515	160	155	2.5	15	Get a Quote
Wear Ring	16015520	160	155	2.5	20	Get a Quote
Wear Ring	16015525	160	155	2.5	25	Get a Quote
Wear Ring	16015540	160	155	2.5	40	Get a Quote
Wear Ring	16015550	160	155	2.5	50	Get a Quote
Wear Ring	16515320	165	153	6	20	Get a Quote
Wear Ring	16515715	165	157	4	15	Get a Quote
Wear Ring	16515720	165	157	4	20	Get a Quote
Wear Ring	16515725	165	157	4	25	Get a Quote
Wear Ring	16515730	165	157	4	30	Get a Quote
Wear Ring	16515735	165	157	4	35	Get a Quote
Wear Ring	16515745	165	157	4	45	Get a Quote
Wear Ring	16515750	165	157	4	50	Get a Quote
Wear Ring	16515815	165	158	3.5	15	Get a Quote
Wear Ring	16515825	165	158	3.5	25	Get a Quote
Wear Ring	16515850	165	158	3.5	50	Get a Quote
Wear Ring	1651599.7	165	159	3	9.7	Get a Quote
Wear Ring	16515915	165	159	3	15	Get a Quote
Wear Ring	16515925	165	159	3	25	Get a Quote
Wear Ring	16515930	165	159	3	30	Get a Quote
Wear Ring	16515940	165	159	3	40	Get a Quote
Wear Ring	2001958	200	195	2.5	8	Get a Quote
Wear Ring	2001959.7	200	195	2.5	9.7	Get a Quote
Wear Ring	20019515	200	195	2.5	15	Get a Quote
Wear Ring	20019520	200	195	2.5	20	Get a Quote
Wear Ring	20019525	200	195	2.5	25	Get a Quote
Wear Ring	20019530	200	195	2.5	30	Get a Quote
Wear Ring	2052006.1	205	200	2.5	6.1	Get a Quote
Wear Ring	20520015	205	200	2.5	15	Get a Quote
Wear Ring	20520020	205	200	2.5	20	Get a Quote
Wear Ring	20520025	205	200	2.5	25	Get a Quote
Wear Ring	21019830	210	198	6	30	Get a Quote
Wear Ring	2102029	210	202	4	9	Get a Quote
Wear Ring	21020228.5	210	202	4	28.5	Get a Quote
Wear Ring	21020320	210	203	3.5	20	Get a Quote
Wear Ring	21020515	210	205	2.5	15	Get a Quote
Wear Ring	21020520	210	205	2.5	20	Get a Quote
Wear Ring	21520520	215	205	5	20	Get a Quote
Wear Ring	21520725	215	207	4	25	Get a Quote
Wear Ring	21520730	215	207	4	30	Get a Quote
Wear Ring	21520750	215	207	4	50	Get a Quote
Wear Ring	21520920	215	209	3	20	Get a Quote
Wear Ring	21520925	215	209	3	25	Get a Quote
Wear Ring	21521015	215	210	2.5	15	Get a Quote
Wear Ring	21521020	215	210	2.5	20	Get a Quote
Wear Ring	21521025	215	210	2.5	25	Get a Quote
Wear Ring	21521030	215	210	2.5	30	Get a Quote
Wear Ring	22020822.5	220	208	6	22.5	Get a Quote
Wear Ring	22020830	220	208	6	30	Get a Quote
Wear Ring	22020919	220	209	5.5	19	Get a Quote
Wear Ring	2202129	220	212	4	9	Get a Quote
Wear Ring	22021225	220	212	4	25	Get a Quote
Wear Ring	22021228.5	220	212	4	28.5	Get a Quote
Wear Ring	22021415	220	214	3	15	Get a Quote
Wear Ring	22021420	220	214	3	20	Get a Quote
Wear Ring	22021425	220	214	3	25	Get a Quote
Wear Ring	22021440	220	214	3	40	Get a Quote
Wear Ring	2202159.7	220	215	2.5	9.7	Get a Quote
Wear Ring	22021515	220	215	2.5	15	Get a Quote
Wear Ring	22021520	220	215	2.5	20	Get a Quote
Wear Ring	22021525	220	215	2.5	25	Get a Quote
Wear Ring	22519520	225	195	15	20	Get a Quote
Wear Ring	22521322.5	225	213	6	22.5	Get a Quote
Wear Ring	22521325	225	213	6	25	Get a Quote
Wear Ring	22521715	225	217	4	15	Get a Quote
Wear Ring	22521725	225	217	4	25	Get a Quote
Wear Ring	22521745	225	217	4	45	Get a Quote
Wear Ring	22521750	225	217	4	50	Get a Quote
Wear Ring	22521920	225	219	3	20	Get a Quote
Wear Ring	22521950	225	219	3	50	Get a Quote
Wear Ring	22522015	225	220	2.5	15	Get a Quote
Wear Ring	22522020	225	220	2.5	20	Get a Quote
Wear Ring	22522025	225	220	2.5	25	Get a Quote
Wear Ring	23021825	230	218	6	25	Get a Quote
Wear Ring	23022320	230	223	3.5	20	Get a Quote
Wear Ring	23022420	230	224	3	20	Get a Quote
Wear Ring	23022425	230	224	3	25	Get a Quote
Wear Ring	23022430	230	224	3	30	Get a Quote
Wear Ring	23022515	230	225	2.5	15	Get a Quote
Wear Ring	23022520	230	225	2.5	20	Get a Quote
Wear Ring	23022525	230	225	2.5	25	Get a Quote
Wear Ring	23022530	230	225	2.5	30	Get a Quote
Wear Ring	23522825.3	235	228	3.5	25.3	Get a Quote
Wear Ring	23523015	235	230	2.5	15	Get a Quote
Wear Ring	23523020	235	230	2.5	20	Get a Quote
Wear Ring	23523025	235	230	2.5	25	Get a Quote
Wear Ring	23523030	235	230	2.5	30	Get a Quote
Wear Ring	23823030	238	230	4	30	Get a Quote
Wear Ring	24023220	240	232	4	20	Get a Quote
Wear Ring	24023225	240	232	4	25	Get a Quote
Wear Ring	24023329.5	240	233	3.5	29.5	Get a Quote
Wear Ring	24023450	240	234	3	50	Get a Quote
Wear Ring	24023515	240	235	2.5	15	Get a Quote
Wear Ring	24023520	240	235	2.5	20	Get a Quote
Wear Ring	24023530	240	235	2.5	30	Get a Quote
Wear Ring	24023535	240	235	2.5	35	Get a Quote
Wear Ring	24023540	240	235	2.5	40	Get a Quote
Wear Ring	24223880	242	238	2	80	Get a Quote
Wear Ring	24524015	245	240	2.5	15	Get a Quote
Wear Ring	24524020	245	240	2.5	20	Get a Quote
Wear Ring	24524030	245	240	2.5	30	Get a Quote
Wear Ring	25023822.5	250	238	6	22.5	Get a Quote
Wear Ring	25023825	250	238	6	25	Get a Quote
Wear Ring	25023827.5	250	238	6	27.5	Get a Quote
Wear Ring	25024225	250	242	4	25	Get a Quote
Wear Ring	25024255	250	242	4	55	Get a Quote
Wear Ring	25024420	250	244	3	20	Get a Quote
Wear Ring	25024425	250	244	3	25	Get a Quote
Wear Ring	25024430	250	244	3	30	Get a Quote
Wear Ring	25024515	250	245	2.5	15	Get a Quote
Wear Ring	25024520	250	245	2.5	20	Get a Quote
Wear Ring	25024525	250	245	2.5	25	Get a Quote
Wear Ring	25024530	250	245	2.5	30	Get a Quote
Wear Ring	25524925	255	249	3	25	Get a Quote
Wear Ring	25525015	255	250	2.5	15	Get a Quote
Wear Ring	25525020	255	250	2.5	20	Get a Quote
Wear Ring	25525025	255	250	2.5	25	Get a Quote
Wear Ring	26025215	260	252	4	15	Get a Quote
Wear Ring	26025322	260	253	3.5	22	Get a Quote
Wear Ring	26025430	260	254	3	30	Get a Quote
Wear Ring	26025515	260	255	2.5	15	Get a Quote
Wear Ring	26025520	260	255	2.5	20	Get a Quote
Wear Ring	26025525	260	255	2.5	25	Get a Quote
Wear Ring	26025530	260	255	2.5	30	Get a Quote
Wear Ring	26525322	265	253	6	22	Get a Quote
Wear Ring	26526019.5	265	260	2.5	19.5	Get a Quote
Wear Ring	26526025	265	260	2.5	25	Get a Quote
Wear Ring	26526030	265	260	2.5	30	Get a Quote
Wear Ring	26626025	266	260	3	25	Get a Quote
Wear Ring	26626030	266	260	3	30	Get a Quote
Wear Ring	26626040	266	260	3	40	Get a Quote
Wear Ring	27026235	270	262	4	35	Get a Quote
Wear Ring	27026515	270	265	2.5	15	Get a Quote
Wear Ring	27026520	270	265	2.5	20	Get a Quote
Wear Ring	27026525	270	265	2.5	25	Get a Quote
Wear Ring	27026530	270	265	2.5	30	Get a Quote
Wear Ring	27527015	275	270	2.5	15	Get a Quote
Wear Ring	28026830	280	268	6	30	Get a Quote
Wear Ring	28027215	280	272	4	15	Get a Quote
Wear Ring	28027225	280	272	4	25	Get a Quote
Wear Ring	28027430	280	274	3	30	Get a Quote
Wear Ring	28027515	280	275	2.5	15	Get a Quote
Wear Ring	28027520	280	275	2.5	20	Get a Quote
Wear Ring	28027525	280	275	2.5	25	Get a Quote
Wear Ring	28027530	280	275	2.5	30	Get a Quote
Wear Ring	28528015	285	280	2.5	15	Get a Quote
Wear Ring	28528020	285	280	2.5	20	Get a Quote
Wear Ring	28528025	285	280	2.5	25	Get a Quote
Wear Ring	29028430	290	284	3	30	Get a Quote
Wear Ring	29028525	290	285	2.5	25	Get a Quote
Wear Ring	29028530	290	285	2.5	30	Get a Quote
Wear Ring	29529025	295	290	2.5	25	Get a Quote

Hydraulic Seals & Pneumatic seals

Wear Ring

Wear Ring

Materials Properties

Technical Data

Advantages

Need to know more about our Wear Ring size specification ?

Company

Production

Support

Contact
