Back-up Ring Standard Size Charts

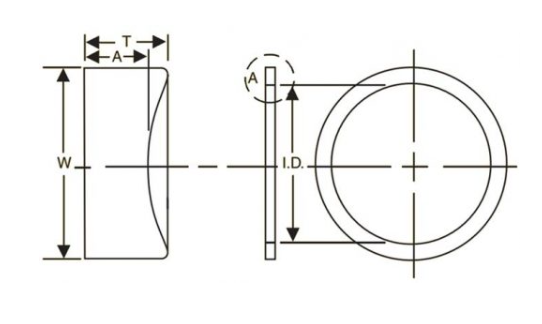

The backup ring is used together with the sealing ring to prevent the sealing ring from being squeezed into the gap on the low-pressure side when the pressure continues to increase, so the backup ring is a filler for the sealing ring, which is not a seal in itself, but effectively improves the working pressure range of the sealing ring.

USA	Imperial Size in Inches				Metric Size in Millimeters				Add to Cart
Dash No.	ID (inch)	W (inch)	T (inch)	A (inch)	ID (mm)	W (mm)	T (mm)	A (mm)

004	0.096	0.053	0.049	0.045	2.440	1.350	1.24	1.14	Get a Quote
005	0.127	0.053	0.049	0.045	3.230	1.350	1.24	1.14	Get a Quote
006	0.14	0.053	0.049	0.045	3.560	1.350	1.24	1.14	Get a Quote
007	0.171	0.053	0.049	0.045	4.340	1.350	1.24	1.14	Get a Quote
008	0.202	0.053	0.049	0.045	5.130	1.350	1.24	1.14	Get a Quote
009	0.234	0.053	0.049	0.045	5.940	1.350	1.24	1.14	Get a Quote
010	0.265	0.053	0.049	0.045	6.730	1.350	1.24	1.14	Get a Quote
011	0.327	0.053	0.049	0.045	8.310	1.350	1.24	1.14	Get a Quote
012	0.39	0.053	0.049	0.045	9.910	1.350	1.24	1.14	Get a Quote
013	0.455	0.053	0.049	0.045	11.560	1.350	1.24	1.14	Get a Quote
014	0.518	0.053	0.049	0.045	13.160	1.350	1.24	1.14	Get a Quote
015	0.58	0.053	0.049	0.045	14.730	1.350	1.24	1.14	Get a Quote
016	0.643	0.053	0.049	0.045	16.330	1.350	1.24	1.14	Get a Quote
017	0.705	0.053	0.049	0.045	17.910	1.350	1.24	1.14	Get a Quote
018	0.768	0.053	0.049	0.045	19.510	1.350	1.24	1.14	Get a Quote
019	0.83	0.053	0.049	0.045	21.080	1.350	1.24	1.14	Get a Quote
020	0.893	0.053	0.049	0.045	22.680	1.350	1.24	1.14	Get a Quote
021	0.955	0.053	0.049	0.045	24.260	1.350	1.24	1.14	Get a Quote
022	1.018	0.053	0.049	0.045	25.860	1.350	1.24	1.14	Get a Quote
023	1.08	0.053	0.049	0.045	27.430	1.350	1.24	1.14	Get a Quote
024	1.143	0.053	0.049	0.045	29.030	1.350	1.24	1.14	Get a Quote
025	1.205	0.053	0.049	0.045	30.610	1.350	1.24	1.14	Get a Quote
026	1.268	0.053	0.049	0.045	32.210	1.350	1.24	1.14	Get a Quote
027	1.33	0.053	0.049	0.045	33.780	1.350	1.24	1.14	Get a Quote
028	1.393	0.053	0.049	0.045	35.380	1.350	1.24	1.14	Get a Quote
029	1.518	0.053	0.049	0.045	38.560	1.350	1.24	1.14	Get a Quote
030	1.643	0.053	0.049	0.045	41.730	1.350	1.24	1.14	Get a Quote
031	1.768	0.053	0.049	0.045	44.910	1.350	1.24	1.14	Get a Quote
032	1.893	0.053	0.049	0.045	48.080	1.350	1.24	1.14	Get a Quote
033	2.018	0.053	0.049	0.045	51.260	1.350	1.24	1.14	Get a Quote
034	2.143	0.053	0.049	0.045	54.430	1.350	1.24	1.14	Get a Quote
035	2.268	0.053	0.049	0.045	57.610	1.350	1.24	1.14	Get a Quote
036	2.393	0.053	0.049	0.045	60.780	1.350	1.24	1.14	Get a Quote
037	2.519	0.053	0.049	0.045	63.980	1.350	1.24	1.14	Get a Quote
038	2.643	0.053	0.049	0.045	67.130	1.350	1.24	1.14	Get a Quote
039	2.768	0.053	0.049	0.045	70.310	1.350	1.24	1.14	Get a Quote
040	2.893	0.053	0.049	0.045	73.480	1.350	1.24	1.14	Get a Quote
041	3.018	0.053	0.049	0.045	76.660	1.350	1.24	1.14	Get a Quote
042	3.268	0.053	0.049	0.045	83.010	1.350	1.24	1.14	Get a Quote
043	3.518	0.053	0.049	0.045	89.360	1.350	1.24	1.14	Get a Quote
044	3.768	0.053	0.049	0.045	95.710	1.350	1.24	1.14	Get a Quote
045	4.018	0.053	0.049	0.045	102.060	1.350	1.24	1.14	Get a Quote
046	4.268	0.053	0.049	0.045	108.410	1.350	1.24	1.14	Get a Quote
047	4.518	0.053	0.049	0.045	114.760	1.350	1.24	1.14	Get a Quote
048	4.768	0.053	0.049	0.045	121.110	1.350	1.24	1.14	Get a Quote
049	5.018	0.053	0.049	0.045	127.460	1.350	1.24	1.14	Get a Quote
050	5.268	0.053	0.049	0.045	133.810	1.350	1.24	1.14	Get a Quote
102	0.077	0.086	0.053	0.045	1.960	2.180	1.35	1.14	Get a Quote
103	0.109	0.086	0.053	0.045	2.770	2.180	1.35	1.14	Get a Quote
104	0.14	0.086	0.053	0.045	3.560	2.180	1.35	1.14	Get a Quote
105	0.171	0.086	0.053	0.045	4.340	2.180	1.35	1.14	Get a Quote
106	0.202	0.086	0.053	0.045	5.130	2.180	1.35	1.14	Get a Quote
107	0.234	0.086	0.053	0.045	5.940	2.180	1.35	1.14	Get a Quote
108	0.265	0.086	0.053	0.045	6.730	2.180	1.35	1.14	Get a Quote
109	0.327	0.086	0.053	0.045	8.310	2.180	1.35	1.14	Get a Quote
110	0.39	0.086	0.053	0.045	9.910	2.180	1.35	1.14	Get a Quote
111	0.452	0.086	0.053	0.045	11.480	2.180	1.35	1.14	Get a Quote
112	0.515	0.086	0.053	0.045	13.080	2.180	1.35	1.14	Get a Quote
113	0.577	0.086	0.053	0.045	14.660	2.180	1.35	1.14	Get a Quote
114	0.64	0.086	0.053	0.045	16.260	2.180	1.35	1.14	Get a Quote
115	0.702	0.086	0.053	0.045	17.830	2.180	1.35	1.14	Get a Quote
116	0.765	0.086	0.053	0.045	19.430	2.180	1.35	1.14	Get a Quote
117	0.831	0.086	0.053	0.045	21.110	2.180	1.35	1.14	Get a Quote
118	0.893	0.086	0.053	0.045	22.680	2.180	1.35	1.14	Get a Quote
119	0.956	0.086	0.053	0.045	24.280	2.180	1.35	1.14	Get a Quote
120	1.018	0.086	0.053	0.045	25.860	2.180	1.35	1.14	Get a Quote
121	1.081	0.086	0.053	0.045	27.460	2.180	1.35	1.14	Get a Quote
122	1.143	0.086	0.053	0.045	29.030	2.180	1.35	1.14	Get a Quote
123	1.206	0.086	0.053	0.045	30.630	2.180	1.35	1.14	Get a Quote
124	1.268	0.086	0.053	0.045	32.210	2.180	1.35	1.14	Get a Quote
125	1.331	0.086	0.053	0.045	33.810	2.180	1.35	1.14	Get a Quote
126	1.393	0.086	0.053	0.045	35.380	2.180	1.35	1.14	Get a Quote
127	1.456	0.086	0.053	0.045	36.980	2.180	1.35	1.14	Get a Quote
128	1.518	0.086	0.053	0.045	38.560	2.180	1.35	1.14	Get a Quote
130	1.643	0.086	0.053	0.045	41.730	2.180	1.35	1.14	Get a Quote
131	1.706	0.086	0.053	0.045	43.330	2.180	1.35	1.14	Get a Quote
132	1.768	0.086	0.053	0.045	44.910	2.180	1.35	1.14	Get a Quote
133	1.831	0.086	0.053	0.045	46.510	2.180	1.35	1.14	Get a Quote
134	1.893	0.086	0.053	0.045	48.080	2.180	1.35	1.14	Get a Quote
135	1.956	0.086	0.053	0.045	49.680	2.180	1.35	1.14	Get a Quote
136	2.018	0.086	0.053	0.045	51.260	2.180	1.35	1.14	Get a Quote
137	2.081	0.086	0.053	0.045	52.860	2.180	1.35	1.14	Get a Quote
138	2.143	0.086	0.053	0.045	54.430	2.180	1.35	1.14	Get a Quote
139	2.206	0.086	0.053	0.045	56.030	2.180	1.35	1.14	Get a Quote
140	2.268	0.086	0.053	0.045	57.610	2.180	1.35	1.14	Get a Quote
141	2.331	0.086	0.053	0.045	59.210	2.180	1.35	1.14	Get a Quote
142	2.393	0.086	0.053	0.045	60.780	2.180	1.35	1.14	Get a Quote
143	2.456	0.086	0.053	0.045	62.380	2.180	1.35	1.14	Get a Quote
144	2.528	0.086	0.053	0.045	64.210	2.180	1.35	1.14	Get a Quote
145	2.518	0.086	0.053	0.045	63.960	2.180	1.35	1.14	Get a Quote
146	2.643	0.086	0.053	0.045	67.130	2.180	1.35	1.14	Get a Quote
147	2.706	0.086	0.053	0.045	68.730	2.180	1.35	1.14	Get a Quote
148	2.768	0.086	0.053	0.045	70.310	2.180	1.35	1.14	Get a Quote
149	2.831	0.086	0.053	0.045	71.910	2.180	1.35	1.14	Get a Quote
150	2.893	0.086	0.053	0.045	73.480	2.180	1.35	1.14	Get a Quote
151	3.018	0.086	0.053	0.045	76.660	2.180	1.35	1.14	Get a Quote
152	3.268	0.086	0.053	0.045	83.010	2.180	1.35	1.14	Get a Quote
153	3.518	0.086	0.053	0.045	89.360	2.180	1.35	1.14	Get a Quote
154	3.768	0.086	0.053	0.045	95.710	2.180	1.35	1.14	Get a Quote
155	4.018	0.086	0.053	0.045	102.060	2.180	1.35	1.14	Get a Quote
156	4.268	0.086	0.053	0.045	108.410	2.180	1.35	1.14	Get a Quote
157	4.518	0.086	0.053	0.045	114.760	2.180	1.35	1.14	Get a Quote
158	4.768	0.086	0.053	0.045	121.110	2.180	1.35	1.14	Get a Quote
159	5.018	0.086	0.053	0.045	127.460	2.180	1.35	1.14	Get a Quote
160	5.268	0.086	0.053	0.045	133.810	2.180	1.35	1.14	Get a Quote
161	5.518	0.086	0.053	0.045	140.160	2.180	1.35	1.14	Get a Quote
162	5.768	0.086	0.053	0.045	146.510	2.180	1.35	1.14	Get a Quote
163	6.018	0.086	0.053	0.045	152.860	2.180	1.35	1.14	Get a Quote
164	6.238	0.086	0.053	0.045	158.450	2.180	1.35	1.14	Get a Quote
165	6.518	0.086	0.053	0.045	165.560	2.180	1.35	1.14	Get a Quote
166	6.768	0.086	0.053	0.045	171.910	2.180	1.35	1.14	Get a Quote
167	7.018	0.086	0.053	0.045	178.260	2.180	1.35	1.14	Get a Quote
168	7.268	0.086	0.053	0.045	184.610	2.180	1.35	1.14	Get a Quote
169	7.518	0.086	0.053	0.045	190.960	2.180	1.35	1.14	Get a Quote
170	7.768	0.086	0.053	0.045	197.310	2.180	1.35	1.14	Get a Quote
171	8.018	0.086	0.053	0.045	203.660	2.180	1.35	1.14	Get a Quote
172	8.268	0.086	0.053	0.045	210.010	2.180	1.35	1.14	Get a Quote
173	8.518	0.086	0.053	0.045	216.360	2.180	1.35	1.14	Get a Quote
174	8.768	0.086	0.053	0.045	222.710	2.180	1.35	1.14	Get a Quote
175	9.018	0.086	0.053	0.045	229.060	2.180	1.35	1.14	Get a Quote
176	9.268	0.086	0.053	0.045	235.410	2.180	1.35	1.14	Get a Quote
177	9.518	0.086	0.053	0.045	241.760	2.180	1.35	1.14	Get a Quote
178	9.768	0.086	0.053	0.045	248.110	2.180	1.35	1.14	Get a Quote
201	0.202	0.118	0.05	0.040	5.130	3.000	1.27	1.02	Get a Quote
202	0.265	0.118	0.05	0.040	6.730	3.000	1.27	1.02	Get a Quote
203	0.327	0.118	0.05	0.040	8.310	3.000	1.27	1.02	Get a Quote
204	0.39	0.118	0.05	0.040	9.910	3.000	1.27	1.02	Get a Quote
205	0.455	0.118	0.05	0.040	11.560	3.000	1.27	1.02	Get a Quote
206	0.518	0.118	0.05	0.040	13.160	3.000	1.27	1.02	Get a Quote
207	0.58	0.118	0.05	0.040	14.730	3.000	1.27	1.02	Get a Quote
208	0.643	0.118	0.05	0.040	16.330	3.000	1.27	1.02	Get a Quote
209	0.705	0.118	0.05	0.040	17.910	3.000	1.27	1.02	Get a Quote
210	0.765	0.118	0.05	0.040	19.430	3.000	1.27	1.02	Get a Quote
211	0.828	0.118	0.05	0.040	21.030	3.000	1.27	1.02	Get a Quote
212	0.891	0.118	0.05	0.040	22.630	3.000	1.27	1.02	Get a Quote
213	0.953	0.118	0.05	0.040	24.210	3.000	1.27	1.02	Get a Quote
214	1.016	0.118	0.05	0.040	25.810	3.000	1.27	1.02	Get a Quote
215	1.078	0.118	0.05	0.040	27.380	3.000	1.27	1.02	Get a Quote
216	1.141	0.118	0.05	0.040	28.980	3.000	1.27	1.02	Get a Quote
217	1.203	0.118	0.05	0.040	30.560	3.000	1.27	1.02	Get a Quote
218	1.266	0.118	0.05	0.040	32.160	3.000	1.27	1.02	Get a Quote
219	1.334	0.118	0.05	0.040	33.880	3.000	1.27	1.02	Get a Quote
220	1.397	0.118	0.05	0.040	35.480	3.000	1.27	1.02	Get a Quote
221	1.459	0.118	0.05	0.040	37.060	3.000	1.27	1.02	Get a Quote
222	1.522	0.118	0.05	0.040	38.660	3.000	1.27	1.02	Get a Quote
223	1.647	0.118	0.05	0.040	41.830	3.000	1.27	1.02	Get a Quote
224	1.772	0.118	0.05	0.040	45.010	3.000	1.27	1.02	Get a Quote
225	1.897	0.118	0.05	0.040	48.180	3.000	1.27	1.02	Get a Quote
231	2.631	0.118	0.05	0.040	66.830	3.000	1.27	1.02	Get a Quote
232	2.756	0.118	0.05	0.040	70.000	3.000	1.27	1.02	Get a Quote
233	2.881	0.118	0.05	0.040	73.180	3.000	1.27	1.02	Get a Quote
234	3.006	0.118	0.05	0.040	76.350	3.000	1.27	1.02	Get a Quote
235	3.131	0.118	0.05	0.040	79.530	3.000	1.27	1.02	Get a Quote
236	3.256	0.118	0.05	0.040	82.700	3.000	1.27	1.02	Get a Quote
237	3.381	0.118	0.05	0.040	85.880	3.000	1.27	1.02	Get a Quote
238	3.506	0.118	0.05	0.040	89.050	3.000	1.27	1.02	Get a Quote
239	3.631	0.118	0.05	0.040	92.230	3.000	1.27	1.02	Get a Quote
240	3.756	0.118	0.05	0.040	95.400	3.000	1.27	1.02	Get a Quote
241	3.881	0.118	0.05	0.040	98.580	3.000	1.27	1.02	Get a Quote
242	4.006	0.118	0.05	0.040	101.750	3.000	1.27	1.02	Get a Quote
243	4.131	0.118	0.05	0.040	104.930	3.000	1.27	1.02	Get a Quote
244	4.256	0.118	0.05	0.040	108.100	3.000	1.27	1.02	Get a Quote
245	4.381	0.118	0.05	0.040	111.280	3.000	1.27	1.02	Get a Quote
246	4.506	0.118	0.05	0.040	114.450	3.000	1.27	1.02	Get a Quote
247	4.631	0.118	0.05	0.040	117.630	3.000	1.27	1.02	Get a Quote
248	4.768	0.118	0.05	0.040	121.110	3.000	1.27	1.02	Get a Quote
249	4.893	0.118	0.05	0.040	124.280	3.000	1.27	1.02	Get a Quote
250	5.018	0.118	0.05	0.040	127.460	3.000	1.27	1.02	Get a Quote
251	5.143	0.118	0.05	0.040	130.630	3.000	1.27	1.02	Get a Quote
252	5.268	0.118	0.05	0.040	133.810	3.000	1.27	1.02	Get a Quote
253	5.393	0.118	0.05	0.040	136.980	3.000	1.27	1.02	Get a Quote
254	5.518	0.118	0.05	0.040	140.160	3.000	1.27	1.02	Get a Quote
255	5.643	0.118	0.05	0.040	143.330	3.000	1.27	1.02	Get a Quote
256	5.768	0.118	0.05	0.040	146.510	3.000	1.27	1.02	Get a Quote
257	5.893	0.118	0.05	0.040	149.680	3.000	1.27	1.02	Get a Quote
258	6.018	0.118	0.05	0.040	152.860	3.000	1.27	1.02	Get a Quote
259	6.268	0.118	0.05	0.040	159.210	3.000	1.27	1.02	Get a Quote
260	6.518	0.118	0.05	0.040	165.560	3.000	1.27	1.02	Get a Quote
261	6.768	0.118	0.05	0.040	171.910	3.000	1.27	1.02	Get a Quote
262	7.018	0.118	0.05	0.040	178.260	3.000	1.27	1.02	Get a Quote
263	7.268	0.118	0.05	0.040	184.610	3.000	1.27	1.02	Get a Quote
264	7.518	0.118	0.05	0.040	190.960	3.000	1.27	1.02	Get a Quote
265	7.768	0.118	0.05	0.040	197.310	3.000	1.27	1.02	Get a Quote
266	8.018	0.118	0.05	0.040	203.660	3.000	1.27	1.02	Get a Quote
267	8.268	0.118	0.05	0.040	210.010	3.000	1.27	1.02	Get a Quote
268	8.518	0.118	0.05	0.040	216.360	3.000	1.27	1.02	Get a Quote
269	8.768	0.118	0.05	0.040	222.710	3.000	1.27	1.02	Get a Quote
270	9.018	0.118	0.05	0.040	229.060	3.000	1.27	1.02	Get a Quote
271	9.268	0.118	0.05	0.040	235.410	3.000	1.27	1.02	Get a Quote
272	9.518	0.118	0.05	0.040	241.760	3.000	1.27	1.02	Get a Quote
273	9.768	0.118	0.05	0.040	248.110	3.000	1.27	1.02	Get a Quote
274	10.018	0.118	0.05	0.040	254.460	3.000	1.27	1.02	Get a Quote
275	10.518	0.118	0.05	0.040	267.160	3.000	1.27	1.02	Get a Quote
276	11.018	0.118	0.05	0.040	279.860	3.000	1.27	1.02	Get a Quote
277	11.518	0.118	0.05	0.040	292.560	3.000	1.27	1.02	Get a Quote
278	12.018	0.118	0.05	0.040	305.260	3.000	1.27	1.02	Get a Quote
279	13.018	0.118	0.05	0.040	330.660	3.000	1.27	1.02	Get a Quote
280	14.018	0.118	0.05	0.040	356.060	3.000	1.27	1.02	Get a Quote
281	15.018	0.118	0.05	0.040	381.460	3.000	1.27	1.02	Get a Quote
282	15.989	0.118	0.05	0.040	406.120	3.000	1.27	1.02	Get a Quote
283	16.989	0.118	0.05	0.040	431.520	3.000	1.27	1.02	Get a Quote
284	17.989	0.118	0.05	0.040	456.920	3.000	1.27	1.02	Get a Quote
309	0.45	0.183	0.076	0.060	11.430	4.650	1.93	1.52	Get a Quote
310	0.513	0.183	0.076	0.060	13.030	4.650	1.93	1.52	Get a Quote
311	0.575	0.183	0.076	0.060	14.610	4.650	1.93	1.52	Get a Quote
312	0.638	0.183	0.076	0.060	16.210	4.650	1.93	1.52	Get a Quote
313	0.7	0.183	0.076	0.060	17.780	4.650	1.93	1.52	Get a Quote
314	0.763	0.183	0.076	0.060	19.380	4.650	1.93	1.52	Get a Quote
315	0.825	0.183	0.076	0.060	20.960	4.650	1.93	1.52	Get a Quote
316	0.888	0.183	0.076	0.060	22.560	4.650	1.93	1.52	Get a Quote
317	0.95	0.183	0.076	0.060	24.130	4.650	1.93	1.52	Get a Quote
318	1.013	0.183	0.076	0.060	25.730	4.650	1.93	1.52	Get a Quote
319	1.075	0.183	0.076	0.060	27.310	4.650	1.93	1.52	Get a Quote
320	1.138	0.183	0.076	0.060	28.910	4.650	1.93	1.52	Get a Quote
321	1.2	0.183	0.076	0.060	30.480	4.650	1.93	1.52	Get a Quote
322	1.263	0.183	0.076	0.060	32.080	4.650	1.93	1.52	Get a Quote
323	1.316	0.183	0.076	0.060	33.430	4.650	1.93	1.52	Get a Quote
324	1.388	0.183	0.076	0.060	35.260	4.650	1.93	1.52	Get a Quote
325	1.513	0.183	0.076	0.060	38.430	4.650	1.93	1.52	Get a Quote
326	1.638	0.183	0.076	0.060	41.610	4.650	1.93	1.52	Get a Quote
327	1.763	0.183	0.076	0.060	44.780	4.650	1.93	1.52	Get a Quote
328	1.888	0.183	0.076	0.060	47.960	4.650	1.93	1.52	Get a Quote
329	2.013	0.183	0.076	0.060	51.130	4.650	1.93	1.52	Get a Quote
330	2.138	0.183	0.076	0.060	54.310	4.650	1.93	1.52	Get a Quote
331	2.268	0.183	0.076	0.060	57.610	4.650	1.93	1.52	Get a Quote
332	2.393	0.183	0.076	0.060	60.780	4.650	1.93	1.52	Get a Quote
333	2.518	0.183	0.076	0.060	63.960	4.650	1.93	1.52	Get a Quote
334	2.643	0.183	0.076	0.060	67.130	4.650	1.93	1.52	Get a Quote
335	2.768	0.183	0.076	0.060	70.310	4.650	1.93	1.52	Get a Quote
336	2.893	0.183	0.076	0.060	73.480	4.650	1.93	1.52	Get a Quote
337	3.018	0.183	0.076	0.060	76.660	4.650	1.93	1.52	Get a Quote
338	3.143	0.183	0.076	0.060	79.830	4.650	1.93	1.52	Get a Quote
339	3.273	0.183	0.076	0.060	83.130	4.650	1.93	1.52	Get a Quote
340	3.398	0.183	0.076	0.060	86.310	4.650	1.93	1.52	Get a Quote
341	3.523	0.183	0.076	0.060	89.480	4.650	1.93	1.52	Get a Quote
342	3.648	0.183	0.076	0.060	92.660	4.650	1.93	1.52	Get a Quote
343	3.773	0.183	0.076	0.060	95.830	4.650	1.93	1.52	Get a Quote
344	3.898	0.183	0.076	0.060	99.010	4.650	1.93	1.52	Get a Quote
345	4.028	0.183	0.076	0.060	102.310	4.650	1.93	1.52	Get a Quote
346	4.153	0.183	0.076	0.060	105.490	4.650	1.93	1.52	Get a Quote
347	4.278	0.183	0.076	0.060	108.660	4.650	1.93	1.52	Get a Quote
348	4.403	0.183	0.076	0.060	111.840	4.650	1.93	1.52	Get a Quote
349	4.528	0.183	0.076	0.060	115.010	4.650	1.93	1.52	Get a Quote
350	4.653	0.183	0.076	0.060	118.190	4.650	1.93	1.52	Get a Quote
351	4.778	0.183	0.076	0.060	121.360	4.650	1.93	1.52	Get a Quote
352	4.903	0.183	0.076	0.060	124.540	4.650	1.93	1.52	Get a Quote
353	5.028	0.183	0.076	0.060	127.710	4.650	1.93	1.52	Get a Quote
354	5.153	0.183	0.076	0.060	130.890	4.650	1.93	1.52	Get a Quote
355	5.278	0.183	0.076	0.060	134.060	4.650	1.93	1.52	Get a Quote
356	5.403	0.183	0.076	0.060	137.240	4.650	1.93	1.52	Get a Quote
357	5.528	0.183	0.076	0.060	140.410	4.650	1.93	1.52	Get a Quote
358	5.653	0.183	0.076	0.060	143.590	4.650	1.93	1.52	Get a Quote
359	5.778	0.183	0.076	0.060	146.760	4.650	1.93	1.52	Get a Quote
360	5.903	0.183	0.076	0.060	149.940	4.650	1.93	1.52	Get a Quote
361	6.028	0.183	0.076	0.060	153.110	4.650	1.93	1.52	Get a Quote
362	6.278	0.183	0.076	0.060	159.460	4.650	1.93	1.52	Get a Quote
363	6.528	0.183	0.076	0.060	165.810	4.650	1.93	1.52	Get a Quote
364	6.778	0.183	0.076	0.060	172.160	4.650	1.93	1.52	Get a Quote
365	7.028	0.183	0.076	0.060	178.510	4.650	1.93	1.52	Get a Quote
366	7.278	0.183	0.076	0.060	184.860	4.650	1.93	1.52	Get a Quote
367	7.528	0.183	0.076	0.060	191.210	4.650	1.93	1.52	Get a Quote
368	7.778	0.183	0.076	0.060	197.560	4.650	1.93	1.52	Get a Quote
369	8.028	0.183	0.076	0.060	203.910	4.650	1.93	1.52	Get a Quote
370	8.278	0.183	0.076	0.060	210.260	4.650	1.93	1.52	Get a Quote
371	8.528	0.183	0.076	0.060	216.610	4.650	1.93	1.52	Get a Quote
372	8.778	0.183	0.076	0.060	222.960	4.650	1.93	1.52	Get a Quote
373	9.028	0.183	0.076	0.060	229.310	4.650	1.93	1.52	Get a Quote
374	9.278	0.183	0.076	0.060	235.660	4.650	1.93	1.52	Get a Quote
375	9.528	0.183	0.076	0.060	242.010	4.650	1.93	1.52	Get a Quote
376	9.778	0.183	0.076	0.060	248.360	4.650	1.93	1.52	Get a Quote
377	10.028	0.183	0.076	0.060	254.710	4.650	1.93	1.52	Get a Quote
378	10.528	0.183	0.076	0.060	267.410	4.650	1.93	1.52	Get a Quote
379	11.028	0.183	0.076	0.060	280.110	4.650	1.93	1.52	Get a Quote
380	11.528	0.183	0.076	0.060	292.810	4.650	1.93	1.52	Get a Quote
381	12.028	0.183	0.076	0.060	305.510	4.650	1.93	1.52	Get a Quote
382	13.028	0.183	0.076	0.060	330.910	4.650	1.93	1.52	Get a Quote
383	14.028	0.183	0.076	0.060	356.310	4.650	1.93	1.52	Get a Quote
384	15.028	0.183	0.076	0.060	381.710	4.650	1.93	1.52	Get a Quote
385	16.008	0.183	0.076	0.060	406.600	4.650	1.93	1.52	Get a Quote
386	17.008	0.183	0.076	0.060	432.000	4.650	1.93	1.52	Get a Quote
387	18.008	0.183	0.076	0.060	457.400	4.650	1.93	1.52	Get a Quote
388	19.006	0.183	0.076	0.060	482.750	4.650	1.93	1.52	Get a Quote
389	20.006	0.183	0.076	0.060	508.150	4.650	1.93	1.52	Get a Quote
390	21.006	0.183	0.076	0.060	533.550	4.650	1.93	1.52	Get a Quote
391	22.006	0.183	0.076	0.060	558.950	4.650	1.93	1.52	Get a Quote
392	22.993	0.183	0.076	0.060	584.020	4.650	1.93	1.52	Get a Quote
393	23.993	0.183	0.076	0.060	609.420	4.650	1.93	1.52	Get a Quote
394	24.993	0.183	0.076	0.060	634.820	4.650	1.93	1.52	Get a Quote
395	25.993	0.183	0.076	0.060	660.220	4.650	1.93	1.52	Get a Quote
425	4.551	0.236	0.117	0.095	115.600	5.990	2.97	2.41	Get a Quote
426	4.676	0.236	0.117	0.095	118.770	5.990	2.97	2.41	Get a Quote
427	4.801	0.236	0.117	0.095	121.950	5.990	2.97	2.41	Get a Quote
428	4.926	0.236	0.117	0.095	125.120	5.990	2.97	2.41	Get a Quote
429	5.051	0.236	0.117	0.095	128.300	5.990	2.97	2.41	Get a Quote
430	5.176	0.236	0.117	0.095	131.470	5.990	2.97	2.41	Get a Quote
431	5.301	0.236	0.117	0.095	134.650	5.990	2.97	2.41	Get a Quote
432	5.426	0.236	0.117	0.095	137.820	5.990	2.97	2.41	Get a Quote
433	5.551	0.236	0.117	0.095	141.000	5.990	2.97	2.41	Get a Quote
434	5.676	0.236	0.117	0.095	144.170	5.990	2.97	2.41	Get a Quote
435	5.801	0.236	0.117	0.095	147.350	5.990	2.97	2.41	Get a Quote
436	5.926	0.236	0.117	0.095	150.520	5.990	2.97	2.41	Get a Quote
437	6.051	0.236	0.117	0.095	153.700	5.990	2.97	2.41	Get a Quote
438	6.274	0.236	0.117	0.095	159.360	5.990	2.97	2.41	Get a Quote
439	6.525	0.236	0.117	0.095	165.740	5.990	2.97	2.41	Get a Quote
440	6.774	0.236	0.117	0.095	172.060	5.990	2.97	2.41	Get a Quote
441	7.024	0.236	0.117	0.095	178.410	5.990	2.97	2.41	Get a Quote
442	7.274	0.236	0.117	0.095	184.760	5.990	2.97	2.41	Get a Quote
443	7.524	0.236	0.117	0.095	191.110	5.990	2.97	2.41	Get a Quote
444	7.774	0.236	0.117	0.095	197.460	5.990	2.97	2.41	Get a Quote
445	8.024	0.236	0.117	0.095	203.810	5.990	2.97	2.41	Get a Quote
446	8.524	0.236	0.117	0.095	216.510	5.990	2.97	2.41	Get a Quote
447	9.024	0.236	0.117	0.095	229.210	5.990	2.97	2.41	Get a Quote
448	9.524	0.236	0.117	0.095	241.910	5.990	2.97	2.41	Get a Quote
449	10.024	0.236	0.117	0.095	254.610	5.990	2.97	2.41	Get a Quote
450	10.524	0.236	0.117	0.095	267.310	5.990	2.97	2.41	Get a Quote
451	11.024	0.236	0.117	0.095	280.010	5.990	2.97	2.41	Get a Quote
452	11.524	0.236	0.117	0.095	292.710	5.990	2.97	2.41	Get a Quote
453	12.024	0.236	0.117	0.095	305.410	5.990	2.97	2.41	Get a Quote
454	12.524	0.236	0.117	0.095	318.110	5.990	2.97	2.41	Get a Quote
455	13.024	0.236	0.117	0.095	330.810	5.990	2.97	2.41	Get a Quote
456	13.524	0.236	0.117	0.095	343.510	5.990	2.97	2.41	Get a Quote
457	14.024	0.236	0.117	0.095	356.210	5.990	2.97	2.41	Get a Quote
458	14.554	0.236	0.117	0.095	369.670	5.990	2.97	2.41	Get a Quote
459	15.024	0.236	0.117	0.095	381.610	5.990	2.97	2.41	Get a Quote
460	15.524	0.236	0.117	0.095	394.310	5.990	2.97	2.41	Get a Quote
461	16.004	0.236	0.117	0.095	406.500	5.990	2.97	2.41	Get a Quote
462	16.504	0.236	0.117	0.095	419.200	5.990	2.97	2.41	Get a Quote
463	17.004	0.236	0.117	0.095	431.900	5.990	2.97	2.41	Get a Quote
464	17.504	0.236	0.117	0.095	444.600	5.990	2.97	2.41	Get a Quote
465	18.004	0.236	0.117	0.095	457.300	5.990	2.97	2.41	Get a Quote
466	18.504	0.236	0.117	0.095	470.000	5.990	2.97	2.41	Get a Quote
467	19.004	0.236	0.117	0.095	482.700	5.990	2.97	2.41	Get a Quote
468	19.504	0.236	0.117	0.095	495.400	5.990	2.97	2.41	Get a Quote
469	20.004	0.236	0.117	0.095	508.100	5.990	2.97	2.41	Get a Quote
470	21.004	0.236	0.117	0.095	533.500	5.990	2.97	2.41	Get a Quote
471	22.004	0.236	0.117	0.095	558.900	5.990	2.97	2.41	Get a Quote
472	23.004	0.236	0.117	0.095	584.300	5.990	2.97	2.41	Get a Quote
473	24.004	0.236	0.117	0.095	609.700	5.990	2.97	2.41	Get a Quote
474	25.004	0.236	0.117	0.095	635.100	5.990	2.97	2.41	Get a Quote
475	26.004	0.236	0.117	0.095	660.500	5.990	2.97	2.41	Get a Quote

If you'd like to discuss your specialty application with a product expert, please contact our CBD SEALS Team：sale@bdseals.com

Characteristics

Material: usually made of rubber, such as NBR, FKM, SIL, EPDM, etc., as well as PTFE material is also often used.

Function: Used to prevent liquid or gas leakage and protect equipment and components.

Good elasticity, able to adapt to different shapes and sizes, good abrasion resistance and corrosion resistance, with a certain degree of shock absorption and cushioning.

Main application areas:

Automotive industry: used for sealing of engine, transmission and other parts.

Machinery manufacturing: used for sealing of various mechanical equipment.

Pipeline valves: to prevent liquid or gas leakage in pipelines.

Electronic equipment: to protect electronic components from the external environment.

Back-up Ring Standard Size Charts

AS-568 USA Standard O-ring Size Chart

Universal Standard O-ring Size Chart

Common Metric Standard O-ring Size Chart

Contact Us

Company

Production

Support

Contact
