Square Ring Size Chart

Square Ring rubber products, also known as square seals or rectangular seals, is a kind of rubber seals with rectangular cross-section. It has the advantages of simple structure, easy installation, reliable sealing performance, etc. It is widely used in various industrial fields, such as automobile manufacturing, mechanical equipment, petrochemical industry, aerospace, etc., for static and dynamic sealing.

USA	Imperial Size in Inches				Metric Size in Millimeters				Add to Cart

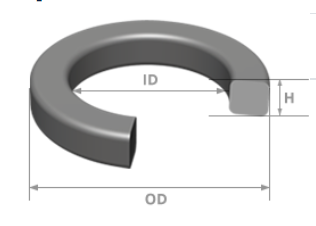

Dash No	ID (inch)	ID (inch)	W (inch)	H (inch)	ID (mm)	OD (mm)	W (mm)	H (mm)	Add to Cart

006	0.114	0.246	0.066	0.066	2.90	6.26	1.68	1.68	Get a Quote
007	0.145	0.277	0.066	0.066	3.68	7.04	1.68	1.68	Get a Quote
008	0.176	0.308	0.066	0.066	4.47	7.83	1.68	1.68	Get a Quote
009	0.208	0.34	0.066	0.066	5.28	8.64	1.68	1.68	Get a Quote
010	0.239	0.371	0.066	0.066	6.07	9.43	1.68	1.68	Get a Quote
011	0.301	0.433	0.066	0.066	7.65	11.01	1.68	1.68	Get a Quote
012	0.364	0.496	0.066	0.066	9.25	12.61	1.68	1.68	Get a Quote
013	0.426	0.558	0.066	0.066	10.82	14.18	1.68	1.68	Get a Quote
014	0.489	0.621	0.066	0.066	12.42	15.78	1.68	1.68	Get a Quote
015	0.551	0.683	0.066	0.066	14.00	17.36	1.68	1.68	Get a Quote
016	0.614	0.746	0.066	0.066	15.60	18.96	1.68	1.68	Get a Quote
017	0.676	0.808	0.066	0.066	17.17	20.53	1.68	1.68	Get a Quote
018	0.739	0.871	0.066	0.066	18.77	22.13	1.68	1.68	Get a Quote
019	0.801	0.933	0.066	0.066	20.35	23.71	1.68	1.68	Get a Quote
020	0.864	0.996	0.066	0.066	21.95	25.31	1.68	1.68	Get a Quote
021	0.926	1.058	0.066	0.066	23.52	26.88	1.68	1.68	Get a Quote
022	0.989	1.121	0.066	0.066	25.12	28.48	1.68	1.68	Get a Quote
023	1.051	1.183	0.066	0.066	26.70	30.06	1.68	1.68	Get a Quote
024	1.114	1.246	0.066	0.066	28.30	31.66	1.68	1.68	Get a Quote
025	1.176	1.308	0.066	0.066	29.87	33.23	1.68	1.68	Get a Quote
026	1.239	1.371	0.066	0.066	31.47	34.83	1.68	1.68	Get a Quote
027	1.301	1.433	0.066	0.066	33.05	36.41	1.68	1.68	Get a Quote
028	1.364	1.496	0.066	0.066	34.65	38.01	1.68	1.68	Get a Quote
029	1.489	1.621	0.066	0.066	37.82	41.18	1.68	1.68	Get a Quote
030	1.614	1.746	0.066	0.066	41.00	44.36	1.68	1.68	Get a Quote
031	1.739	1.871	0.066	0.066	44.17	47.53	1.68	1.68	Get a Quote
032	1.864	1.996	0.066	0.066	47.35	50.71	1.68	1.68	Get a Quote
033	1.989	2.121	0.066	0.066	50.52	53.88	1.68	1.68	Get a Quote
034	2.114	2.246	0.066	0.066	53.70	57.06	1.68	1.68	Get a Quote
035	2.239	2.371	0.066	0.066	56.87	60.23	1.68	1.68	Get a Quote
036	2.364	2.496	0.066	0.066	60.05	63.41	1.68	1.68	Get a Quote
037	2.489	2.621	0.066	0.066	63.22	66.58	1.68	1.68	Get a Quote
038	2.614	2.746	0.066	0.066	66.40	69.76	1.68	1.68	Get a Quote
039	2.739	2.871	0.066	0.066	69.57	72.93	1.68	1.68	Get a Quote
040	2.864	2.996	0.066	0.066	72.75	76.11	1.68	1.68	Get a Quote
041	2.989	3.121	0.066	0.066	75.92	79.28	1.68	1.68	Get a Quote
042	3.239	3.371	0.066	0.066	82.27	85.63	1.68	1.68	Get a Quote
043	3.489	3.621	0.066	0.066	88.62	91.98	1.68	1.68	Get a Quote
044	3.739	3.871	0.066	0.066	94.97	98.33	1.68	1.68	Get a Quote
045	3.989	4.121	0.066	0.066	101.32	104.68	1.68	1.68	Get a Quote
046	4.239	4.371	0.066	0.066	107.67	111.03	1.68	1.68	Get a Quote
047	4.489	4.621	0.066	0.066	114.02	117.38	1.68	1.68	Get a Quote
048	4.739	4.871	0.066	0.066	120.37	123.73	1.68	1.68	Get a Quote
049	4.989	5.121	0.066	0.066	126.72	130.08	1.68	1.68	Get a Quote
050	5.239	5.371	0.066	0.066	133.07	136.43	1.68	1.68	Get a Quote
102	0.049	0.247	0.099	0.099	1.24	6.26	2.51	2.51	Get a Quote
103	0.081	0.279	0.099	0.099	2.06	7.08	2.51	2.51	Get a Quote
104	0.112	0.31	0.099	0.099	2.84	7.86	2.51	2.51	Get a Quote
105	0.143	0.341	0.099	0.099	3.63	8.65	2.51	2.51	Get a Quote
106	0.174	0.372	0.099	0.099	4.42	9.44	2.51	2.51	Get a Quote
107	0.206	0.404	0.099	0.099	5.23	10.25	2.51	2.51	Get a Quote
108	0.237	0.435	0.099	0.099	6.02	11.04	2.51	2.51	Get a Quote
109	0.299	0.497	0.099	0.099	7.59	12.61	2.51	2.51	Get a Quote
110	0.362	0.56	0.099	0.099	9.19	14.21	2.51	2.51	Get a Quote
111	0.424	0.622	0.099	0.099	10.77	15.79	2.51	2.51	Get a Quote
112	0.487	0.685	0.099	0.099	12.37	17.39	2.51	2.51	Get a Quote
113	0.549	0.747	0.099	0.099	13.94	18.96	2.51	2.51	Get a Quote
114	0.612	0.81	0.099	0.099	15.54	20.56	2.51	2.51	Get a Quote
115	0.674	0.872	0.099	0.099	17.12	22.14	2.51	2.51	Get a Quote
116	0.737	0.935	0.099	0.099	18.72	23.74	2.51	2.51	Get a Quote
117	0.799	0.997	0.099	0.099	20.29	25.32	2.51	2.51	Get a Quote
118	0.862	1.06	0.099	0.099	21.89	26.91	2.51	2.51	Get a Quote
119	0.924	1.122	0.099	0.099	23.47	28.49	2.51	2.51	Get a Quote
120	0.987	1.185	0.099	0.099	25.07	30.09	2.51	2.51	Get a Quote
121	1.049	1.247	0.099	0.099	26.64	31.66	2.51	2.51	Get a Quote
122	1.112	1.31	0.099	0.099	28.24	33.26	2.51	2.51	Get a Quote
123	1.174	1.372	0.099	0.099	29.82	34.84	2.51	2.51	Get a Quote
124	1.237	1.435	0.099	0.099	31.42	36.44	2.51	2.51	Get a Quote
125	1.299	1.497	0.099	0.099	32.99	38.01	2.51	2.51	Get a Quote
126	1.362	1.56	0.099	0.099	34.59	39.61	2.51	2.51	Get a Quote
127	1.424	1.622	0.099	0.099	36.17	41.19	2.51	2.51	Get a Quote
128	1.487	1.685	0.099	0.099	37.77	42.79	2.51	2.51	Get a Quote
129	1.549	1.747	0.099	0.099	39.34	44.36	2.51	2.51	Get a Quote
130	1.612	1.81	0.099	0.099	40.94	45.96	2.51	2.51	Get a Quote
131	1.674	1.872	0.099	0.099	42.52	47.54	2.51	2.51	Get a Quote
132	1.737	1.935	0.099	0.099	44.12	49.14	2.51	2.51	Get a Quote
133	1.799	1.997	0.099	0.099	45.69	50.71	2.51	2.51	Get a Quote
134	1.862	2.06	0.099	0.099	47.29	52.32	2.51	2.51	Get a Quote
135	1.925	2.123	0.099	0.099	48.90	53.92	2.51	2.51	Get a Quote
136	1.987	2.185	0.099	0.099	50.47	55.49	2.51	2.51	Get a Quote
137	2.05	2.248	0.099	0.099	52.07	57.09	2.51	2.51	Get a Quote
138	2.112	2.31	0.099	0.099	53.64	58.66	2.51	2.51	Get a Quote
139	2.175	2.373	0.099	0.099	55.25	60.27	2.51	2.51	Get a Quote
140	2.237	2.435	0.099	0.099	56.82	61.84	2.51	2.51	Get a Quote
141	2.3	2.498	0.099	0.099	58.42	63.44	2.51	2.51	Get a Quote
142	2.362	2.56	0.099	0.099	59.99	65.01	2.51	2.51	Get a Quote
143	2.425	2.623	0.099	0.099	61.60	66.62	2.51	2.51	Get a Quote
144	2.487	2.685	0.099	0.099	63.17	68.19	2.51	2.51	Get a Quote
145	2.55	2.748	0.099	0.099	64.77	69.79	2.51	2.51	Get a Quote
146	2.612	2.81	0.099	0.099	66.34	71.36	2.51	2.51	Get a Quote
147	2.675	2.873	0.099	0.099	67.95	72.97	2.51	2.51	Get a Quote
148	2.737	2.935	0.099	0.099	69.52	74.54	2.51	2.51	Get a Quote
149	2.8	2.998	0.099	0.099	71.12	76.14	2.51	2.51	Get a Quote
150	2.862	3.06	0.099	0.099	72.69	77.71	2.51	2.51	Get a Quote
151	2.987	3.185	0.099	0.099	75.87	80.89	2.51	2.51	Get a Quote
152	3.237	3.435	0.099	0.099	82.22	87.24	2.51	2.51	Get a Quote
153	3.487	3.685	0.099	0.099	88.57	93.59	2.51	2.51	Get a Quote
154	3.737	3.935	0.099	0.099	94.92	99.94	2.51	2.51	Get a Quote
155	3.987	4.185	0.099	0.099	101.27	106.29	2.51	2.51	Get a Quote
156	4.237	4.435	0.099	0.099	107.62	112.64	2.51	2.51	Get a Quote
157	4.487	4.685	0.099	0.099	113.97	118.99	2.51	2.51	Get a Quote
158	4.737	4.935	0.099	0.099	120.32	125.34	2.51	2.51	Get a Quote
159	4.987	5.185	0.099	0.099	126.67	131.69	2.51	2.51	Get a Quote
160	5.237	5.435	0.099	0.099	133.02	138.04	2.51	2.51	Get a Quote
161	5.487	5.685	0.099	0.099	139.37	144.39	2.51	2.51	Get a Quote
162	5.737	5.935	0.099	0.099	145.72	150.74	2.51	2.51	Get a Quote
163	5.987	6.185	0.099	0.099	152.07	157.09	2.51	2.51	Get a Quote
164	6.237	6.435	0.099	0.099	158.42	163.44	2.51	2.51	Get a Quote
165	6.487	6.685	0.099	0.099	164.77	169.79	2.51	2.51	Get a Quote
166	6.737	6.935	0.099	0.099	171.12	176.14	2.51	2.51	Get a Quote
167	6.987	7.185	0.099	0.099	177.47	182.49	2.51	2.51	Get a Quote
168	7.237	7.435	0.099	0.099	183.82	188.84	2.51	2.51	Get a Quote
169	7.487	7.685	0.099	0.099	190.17	195.19	2.51	2.51	Get a Quote
170	7.737	7.935	0.099	0.099	196.52	201.54	2.51	2.51	Get a Quote
171	7.987	8.185	0.099	0.099	202.87	207.89	2.51	2.51	Get a Quote
172	8.237	8.435	0.099	0.099	209.22	214.24	2.51	2.51	Get a Quote
173	8.487	8.685	0.099	0.099	215.57	220.59	2.51	2.51	Get a Quote
174	8.737	8.935	0.099	0.099	221.92	226.94	2.51	2.51	Get a Quote
175	8.987	9.185	0.099	0.099	228.27	233.29	2.51	2.51	Get a Quote
176	9.237	9.435	0.099	0.099	234.62	239.64	2.51	2.51	Get a Quote
177	9.487	9.685	0.099	0.099	240.97	245.99	2.51	2.51	Get a Quote
178	9.737	9.935	0.099	0.099	247.32	252.34	2.51	2.51	Get a Quote
201	0.171	0.439	0.134	0.134	4.34	11.14	3.40	3.40	Get a Quote
202	0.234	0.502	0.134	0.134	5.94	12.74	3.40	3.40	Get a Quote
203	0.296	0.564	0.134	0.134	7.52	14.32	3.40	3.40	Get a Quote
204	0.359	0.627	0.134	0.134	9.12	15.92	3.40	3.40	Get a Quote
205	0.421	0.689	0.134	0.134	10.69	17.49	3.40	3.40	Get a Quote
206	0.484	0.752	0.134	0.134	12.29	19.09	3.40	3.40	Get a Quote
207	0.546	0.814	0.134	0.134	13.87	20.67	3.40	3.40	Get a Quote
208	0.609	0.877	0.134	0.134	15.47	22.27	3.40	3.40	Get a Quote
209	0.671	0.939	0.134	0.134	17.04	23.84	3.40	3.40	Get a Quote
210	0.734	1.002	0.134	0.134	18.64	25.44	3.40	3.40	Get a Quote
211	0.796	1.064	0.134	0.134	20.22	27.02	3.40	3.40	Get a Quote
212	0.859	1.127	0.134	0.134	21.82	28.62	3.40	3.40	Get a Quote
213	0.921	1.189	0.134	0.134	23.39	30.19	3.40	3.40	Get a Quote
214	0.984	1.252	0.134	0.134	24.99	31.80	3.40	3.40	Get a Quote
215	1.046	1.314	0.134	0.134	26.57	33.37	3.40	3.40	Get a Quote
216	1.109	1.377	0.134	0.134	28.17	34.97	3.40	3.40	Get a Quote
217	1.171	1.439	0.134	0.134	29.74	36.54	3.40	3.40	Get a Quote
218	1.234	1.502	0.134	0.134	31.34	38.14	3.40	3.40	Get a Quote
219	1.296	1.564	0.134	0.134	32.92	39.72	3.40	3.40	Get a Quote
220	1.359	1.627	0.134	0.134	34.52	41.32	3.40	3.40	Get a Quote
221	1.421	1.689	0.134	0.134	36.09	42.89	3.40	3.40	Get a Quote
222	1.484	1.752	0.134	0.134	37.69	44.49	3.40	3.40	Get a Quote
223	1.609	1.877	0.134	0.134	40.87	47.67	3.40	3.40	Get a Quote
224	1.734	2.002	0.134	0.134	44.04	50.84	3.40	3.40	Get a Quote
225	1.859	2.127	0.134	0.134	47.22	54.02	3.40	3.40	Get a Quote
226	1.984	2.252	0.134	0.134	50.39	57.19	3.40	3.40	Get a Quote
227	2.109	2.377	0.134	0.134	53.57	60.37	3.40	3.40	Get a Quote
228	2.234	2.502	0.134	0.134	56.74	63.54	3.40	3.40	Get a Quote
229	2.359	2.627	0.134	0.134	59.92	66.72	3.40	3.40	Get a Quote
230	2.484	2.752	0.134	0.134	63.09	69.89	3.40	3.40	Get a Quote
231	2.609	2.877	0.134	0.134	66.27	73.07	3.40	3.40	Get a Quote
232	2.734	3.002	0.134	0.134	69.44	76.24	3.40	3.40	Get a Quote
233	2.859	3.127	0.134	0.134	72.62	79.42	3.40	3.40	Get a Quote
234	2.984	3.252	0.134	0.134	75.79	82.59	3.40	3.40	Get a Quote
235	3.109	3.377	0.134	0.134	78.97	85.77	3.40	3.40	Get a Quote
236	3.234	3.502	0.134	0.134	82.14	88.94	3.40	3.40	Get a Quote
237	3.359	3.627	0.134	0.134	85.32	92.12	3.40	3.40	Get a Quote
238	3.484	3.752	0.134	0.134	88.49	95.29	3.40	3.40	Get a Quote
239	3.609	3.877	0.134	0.134	91.67	98.47	3.40	3.40	Get a Quote
240	3.734	4.002	0.134	0.134	94.84	101.64	3.40	3.40	Get a Quote
241	3.859	4.127	0.134	0.134	98.02	104.82	3.40	3.40	Get a Quote
242	3.984	4.252	0.134	0.134	101.19	107.99	3.40	3.40	Get a Quote
243	4.109	4.377	0.134	0.134	104.37	111.17	3.40	3.40	Get a Quote
244	4.234	4.502	0.134	0.134	107.54	114.34	3.40	3.40	Get a Quote
245	4.359	4.627	0.134	0.134	110.72	117.52	3.40	3.40	Get a Quote
246	4.484	4.752	0.134	0.134	113.89	120.69	3.40	3.40	Get a Quote
247	4.609	4.877	0.134	0.134	117.07	123.87	3.40	3.40	Get a Quote
248	4.734	5.002	0.134	0.134	120.24	127.04	3.40	3.40	Get a Quote
249	4.859	5.127	0.134	0.134	123.42	130.22	3.40	3.40	Get a Quote
250	4.984	5.252	0.134	0.134	126.59	133.39	3.40	3.40	Get a Quote
251	5.109	5.377	0.134	0.134	129.77	136.57	3.40	3.40	Get a Quote
252	5.234	5.502	0.134	0.134	132.94	139.74	3.40	3.40	Get a Quote
253	5.359	5.627	0.134	0.134	136.12	142.92	3.40	3.40	Get a Quote
254	5.484	5.752	0.134	0.134	139.29	146.09	3.40	3.40	Get a Quote
255	5.609	5.877	0.134	0.134	142.47	149.27	3.40	3.40	Get a Quote
256	5.734	6.002	0.134	0.134	145.64	152.45	3.40	3.40	Get a Quote
257	5.859	6.127	0.134	0.134	148.82	155.62	3.40	3.40	Get a Quote
258	5.984	6.252	0.134	0.134	151.99	158.79	3.40	3.40	Get a Quote
259	6.234	6.502	0.134	0.134	158.34	165.14	3.40	3.40	Get a Quote
260	6.484	6.752	0.134	0.134	164.69	171.49	3.40	3.40	Get a Quote
261	6.734	7.002	0.134	0.134	171.04	177.84	3.40	3.40	Get a Quote
262	6.984	7.252	0.134	0.134	177.39	184.19	3.40	3.40	Get a Quote
263	7.234	7.502	0.134	0.134	183.74	190.54	3.40	3.40	Get a Quote
264	7.484	7.752	0.134	0.134	190.09	196.89	3.40	3.40	Get a Quote
265	7.734	8.002	0.134	0.134	196.44	203.24	3.40	3.40	Get a Quote
266	7.984	8.252	0.134	0.134	202.79	209.59	3.40	3.40	Get a Quote
267	8.234	8.502	0.134	0.134	209.14	215.94	3.40	3.40	Get a Quote
268	8.484	8.752	0.134	0.134	215.49	222.29	3.40	3.40	Get a Quote
269	8.734	9.002	0.134	0.134	221.84	228.64	3.40	3.40	Get a Quote
270	8.984	9.252	0.134	0.134	228.19	234.99	3.40	3.40	Get a Quote
271	9.234	9.502	0.134	0.134	234.54	241.34	3.40	3.40	Get a Quote
272	9.484	9.752	0.134	0.134	240.89	247.69	3.40	3.40	Get a Quote
273	9.734	10.002	0.134	0.134	247.24	254.04	3.40	3.40	Get a Quote
274	9.984	10.252	0.134	0.134	253.59	260.39	3.40	3.40	Get a Quote
275	10.484	10.752	0.134	0.134	266.29	273.09	3.40	3.40	Get a Quote
276	10.984	11.252	0.134	0.134	278.99	285.79	3.40	3.40	Get a Quote
277	11.484	11.752	0.134	0.134	291.69	298.49	3.40	3.40	Get a Quote
278	11.984	12.252	0.134	0.134	304.39	311.19	3.40	3.40	Get a Quote
279	12.984	13.252	0.134	0.134	329.79	336.59	3.40	3.40	Get a Quote
280	13.984	14.252	0.134	0.134	355.19	361.99	3.40	3.40	Get a Quote
281	14.984	15.252	0.134	0.134	380.59	387.39	3.40	3.40	Get a Quote
282	15.955	16.223	0.134	0.134	405.26	412.06	3.40	3.40	Get a Quote
283	16.955	17.223	0.134	0.134	430.66	437.46	3.40	3.40	Get a Quote
284	17.955	18.223	0.134	0.134	456.06	462.86	3.40	3.40	Get a Quote
309	0.412	0.818	0.203	0.203	10.46	20.78	5.16	5.16	Get a Quote
310	0.475	0.881	0.203	0.203	12.07	22.39	5.16	5.16	Get a Quote
311	0.537	0.943	0.203	0.203	13.64	23.96	5.16	5.16	Get a Quote
312	0.6	1.006	0.203	0.203	15.24	25.56	5.16	5.16	Get a Quote
313	0.662	1.068	0.203	0.203	16.81	27.13	5.16	5.16	Get a Quote
314	0.725	1.131	0.203	0.203	18.42	28.74	5.16	5.16	Get a Quote
315	0.787	1.193	0.203	0.203	19.99	30.31	5.16	5.16	Get a Quote
316	0.85	1.256	0.203	0.203	21.59	31.91	5.16	5.16	Get a Quote
317	0.912	1.318	0.203	0.203	23.16	33.48	5.16	5.16	Get a Quote
318	0.975	1.381	0.203	0.203	24.77	35.09	5.16	5.16	Get a Quote
319	1.037	1.443	0.203	0.203	26.34	36.66	5.16	5.16	Get a Quote
320	1.1	1.506	0.203	0.203	27.94	38.26	5.16	5.16	Get a Quote
321	1.162	1.568	0.203	0.203	29.51	39.83	5.16	5.16	Get a Quote
322	1.225	1.631	0.203	0.203	31.12	41.44	5.16	5.16	Get a Quote
323	1.287	1.693	0.203	0.203	32.69	43.01	5.16	5.16	Get a Quote
324	1.35	1.756	0.203	0.203	34.29	44.61	5.16	5.16	Get a Quote
325	1.475	1.881	0.203	0.203	37.47	47.79	5.16	5.16	Get a Quote
326	1.6	2.006	0.203	0.203	40.64	50.96	5.16	5.16	Get a Quote
327	1.725	2.131	0.203	0.203	43.82	54.14	5.16	5.16	Get a Quote
328	1.85	2.256	0.203	0.203	46.99	57.31	5.16	5.16	Get a Quote
329	1.975	2.381	0.203	0.203	50.17	60.49	5.16	5.16	Get a Quote
330	2.1	2.506	0.203	0.203	53.34	63.66	5.16	5.16	Get a Quote
331	2.225	2.631	0.203	0.203	56.52	66.84	5.16	5.16	Get a Quote
332	2.35	2.756	0.203	0.203	59.69	70.01	5.16	5.16	Get a Quote
333	2.475	2.881	0.203	0.203	62.87	73.19	5.16	5.16	Get a Quote
334	2.6	3.006	0.203	0.203	66.04	76.36	5.16	5.16	Get a Quote
335	2.725	3.131	0.203	0.203	69.22	79.54	5.16	5.16	Get a Quote
336	2.85	3.256	0.203	0.203	72.39	82.71	5.16	5.16	Get a Quote
337	2.975	3.381	0.203	0.203	75.57	85.89	5.16	5.16	Get a Quote
338	3.1	3.506	0.203	0.203	78.74	89.06	5.16	5.16	Get a Quote
339	3.225	3.631	0.203	0.203	81.92	102.24	5.16	5.16	Get a Quote
340	3.35	3.756	0.203	0.203	85.09	95.41	5.16	5.16	Get a Quote
341	3.475	3.881	0.203	0.203	88.27	98.59	5.16	5.16	Get a Quote
342	3.6	4.006	0.203	0.203	91.44	101.76	5.16	5.16	Get a Quote
343	3.725	4.131	0.203	0.203	94.62	104.94	5.16	5.16	Get a Quote
344	3.85	4.256	0.203	0.203	97.79	108.11	5.16	5.16	Get a Quote
345	3.975	4.381	0.203	0.203	100.97	111.29	5.16	5.16	Get a Quote
346	4.1	4.506	0.203	0.203	104.14	114.46	5.16	5.16	Get a Quote
347	4.225	4.631	0.203	0.203	107.32	117.64	5.16	5.16	Get a Quote
348	4.35	4.756	0.203	0.203	110.49	120.81	5.16	5.16	Get a Quote
349	4.475	4.881	0.203	0.203	113.67	123.99	5.16	5.16	Get a Quote
350	4.6	5.006	0.203	0.203	116.84	127.16	5.16	5.16	Get a Quote
351	4.725	5.131	0.203	0.203	120.02	130.34	5.16	5.16	Get a Quote
352	4.85	5.256	0.203	0.203	123.19	133.51	5.16	5.16	Get a Quote
353	4.975	5.381	0.203	0.203	126.37	136.69	5.16	5.16	Get a Quote
354	5.1	5.506	0.203	0.203	129.54	139.86	5.16	5.16	Get a Quote
355	5.225	5.631	0.203	0.203	132.72	143.04	5.16	5.16	Get a Quote
356	5.35	5.756	0.203	0.203	135.89	146.21	5.16	5.16	Get a Quote
357	5.475	5.881	0.203	0.203	139.07	149.39	5.16	5.16	Get a Quote
358	5.6	6.006	0.203	0.203	142.24	152.56	5.16	5.16	Get a Quote
359	5.725	6.131	0.203	0.203	145.42	155.74	5.16	5.16	Get a Quote
360	5.85	6.256	0.203	0.203	148.59	158.91	5.16	5.16	Get a Quote
361	5.975	6.381	0.203	0.203	151.77	162.09	5.16	5.16	Get a Quote
362	6.225	6.631	0.203	0.203	158.12	168.44	5.16	5.16	Get a Quote
363	6.475	6.881	0.203	0.203	164.47	174.79	5.16	5.16	Get a Quote
364	6.725	7.131	0.203	0.203	170.82	181.14	5.16	5.16	Get a Quote
365	6.975	7.381	0.203	0.203	177.17	187.49	5.16	5.16	Get a Quote
366	7.225	7.631	0.203	0.203	183.52	193.84	5.16	5.16	Get a Quote
367	7.475	7.881	0.203	0.203	189.87	200.19	5.16	5.16	Get a Quote
368	7.725	8.131	0.203	0.203	196.22	206.54	5.16	5.16	Get a Quote
369	7.975	8.381	0.203	0.203	202.57	212.89	5.16	5.16	Get a Quote
370	8.225	8.631	0.203	0.203	208.92	219.24	5.16	5.16	Get a Quote
371	8.475	8.881	0.203	0.203	215.27	225.59	5.16	5.16	Get a Quote
372	8.725	9.131	0.203	0.203	221.62	231.94	5.16	5.16	Get a Quote
373	8.975	9.381	0.203	0.203	227.97	238.29	5.16	5.16	Get a Quote
374	9.225	9.631	0.203	0.203	234.32	244.64	5.16	5.16	Get a Quote
375	9.475	9.881	0.203	0.203	240.67	250.99	5.16	5.16	Get a Quote
376	9.725	10.131	0.203	0.203	247.02	257.34	5.16	5.16	Get a Quote
377	9.975	10.381	0.203	0.203	253.37	263.69	5.16	5.16	Get a Quote
378	10.475	10.881	0.203	0.203	266.07	276.39	5.16	5.16	Get a Quote
379	10.975	11.381	0.203	0.203	278.77	289.09	5.16	5.16	Get a Quote
380	11.475	11.881	0.203	0.203	291.47	301.79	5.16	5.16	Get a Quote
381	11.975	12.381	0.203	0.203	304.17	314.49	5.16	5.16	Get a Quote
382	12.975	13.381	0.203	0.203	329.57	339.89	5.16	5.16	Get a Quote
383	13.975	14.381	0.203	0.203	354.97	365.29	5.16	5.16	Get a Quote
384	14.975	15.381	0.203	0.203	380.37	390.69	5.16	5.16	Get a Quote
385	15.955	16.361	0.203	0.203	405.26	415.58	5.16	5.16	Get a Quote
386	16.955	17.361	0.203	0.203	430.66	440.98	5.16	5.16	Get a Quote
387	17.955	18.361	0.203	0.203	456.06	466.38	5.16	5.16	Get a Quote
388	18.955	19.361	0.203	0.203	481.46	491.73	5.16	5.16	Get a Quote
389	19.955	20.361	0.203	0.203	506.86	517.13	5.16	5.16	Get a Quote
390	20.955	21.361	0.203	0.203	532.26	542.53	5.16	5.16	Get a Quote
391	21.955	22.361	0.203	0.203	557.66	567.93	5.16	5.16	Get a Quote
392	22.94	23.346	0.203	0.203	582.68	593.00	5.16	5.16	Get a Quote
393	23.94	24.346	0.203	0.203	608.08	618.40	5.16	5.16	Get a Quote
394	24.94	25.346	0.203	0.203	633.48	643.80	5.16	5.16	Get a Quote
395	25.94	26.346	0.203	0.203	658.88	669.20	5.16	5.16	Get a Quote
425	4.475	5.007	0.266	0.266	113.67	127.13	6.73	6.73	Get a Quote
426	4.6	5.132	0.266	0.266	116.84	130.30	6.73	6.73	Get a Quote
427	4.725	5.257	0.266	0.266	120.02	133.48	6.73	6.73	Get a Quote
428	4.85	5.382	0.266	0.266	123.19	136.65	6.73	6.73	Get a Quote
429	4.975	5.507	0.266	0.266	126.37	139.83	6.73	6.73	Get a Quote
430	5.1	5.632	0.266	0.266	129.54	143.00	6.73	6.73	Get a Quote
431	5.225	5.757	0.266	0.266	132.72	146.18	6.73	6.73	Get a Quote
432	5.35	5.882	0.266	0.266	135.89	149.35	6.73	6.73	Get a Quote
433	5.475	6.007	0.266	0.266	139.07	152.53	6.73	6.73	Get a Quote
434	5.6	6.132	0.266	0.266	142.24	155.70	6.73	6.73	Get a Quote
435	5.725	6.257	0.266	0.266	145.42	158.88	6.73	6.73	Get a Quote
436	5.85	6.382	0.266	0.266	148.59	162.05	6.73	6.73	Get a Quote
437	5.975	6.507	0.266	0.266	151.77	165.23	6.73	6.73	Get a Quote
438	6.225	6.757	0.266	0.266	158.12	171.58	6.73	6.73	Get a Quote
439	6.475	7.007	0.266	0.266	164.47	177.93	6.73	6.73	Get a Quote
440	6.725	7.257	0.266	0.266	170.82	184.28	6.73	6.73	Get a Quote
441	6.975	7.507	0.266	0.266	177.17	190.63	6.73	6.73	Get a Quote
442	7.225	7.757	0.266	0.266	183.52	196.98	6.73	6.73	Get a Quote
443	7.475	8.007	0.266	0.266	189.87	203.33	6.73	6.73	Get a Quote
444	7.725	8.257	0.266	0.266	196.22	209.68	6.73	6.73	Get a Quote
445	7.975	8.507	0.266	0.266	202.57	216.03	6.73	6.73	Get a Quote
446	8.475	9.007	0.266	0.266	215.27	228.73	6.73	6.73	Get a Quote
447	8.975	9.507	0.266	0.266	227.97	241.43	6.73	6.73	Get a Quote
448	9.475	10.007	0.266	0.266	240.67	254.13	6.73	6.73	Get a Quote
449	9.975	10.507	0.266	0.266	253.37	266.83	6.73	6.73	Get a Quote
450	10.475	11.007	0.266	0.266	266.07	279.53	6.73	6.73	Get a Quote
451	10.975	11.507	0.266	0.266	278.77	292.23	6.73	6.73	Get a Quote
452	11.475	12.007	0.266	0.266	291.47	304.93	6.73	6.73	Get a Quote
453	11.975	12.507	0.266	0.266	304.17	317.63	6.73	6.73	Get a Quote
454	12.475	13.007	0.266	0.266	316.87	330.33	6.73	6.73	Get a Quote
455	12.975	13.507	0.266	0.266	329.57	343.03	6.73	6.73	Get a Quote
456	13.457	13.989	0.266	0.266	342.27	355.73	6.73	6.73	Get a Quote
457	13.975	14.507	0.266	0.266	354.97	368.43	6.73	6.73	Get a Quote
458	14.475	15.007	0.266	0.266	367.67	381.13	6.73	6.73	Get a Quote
459	14.975	15.507	0.266	0.266	380.37	393.83	6.73	6.73	Get a Quote
460	15.475	16.007	0.266	0.266	393.07	406.53	6.73	6.73	Get a Quote
461	15.955	16.487	0.266	0.266	405.26	418.72	6.73	6.73	Get a Quote
462	16.455	16.987	0.266	0.266	417.96	431.42	6.73	6.73	Get a Quote
463	16.955	17.487	0.266	0.266	430.66	444.12	6.73	6.73	Get a Quote
464	17.455	17.987	0.266	0.266	443.36	456.82	6.73	6.73	Get a Quote
465	17.955	18.487	0.266	0.266	456.06	469.52	6.73	6.73	Get a Quote
466	18.455	18.987	0.266	0.266	468.76	482.22	6.73	6.73	Get a Quote
467	18.955	19.487	0.266	0.266	481.46	494.92	6.73	6.73	Get a Quote
468	19.455	19.987	0.266	0.266	494.16	507.62	6.73	6.73	Get a Quote
469	19.955	20.487	0.266	0.266	506.86	520.32	6.73	6.73	Get a Quote
470	20.955	21.487	0.266	0.266	532.26	545.72	6.73	6.73	Get a Quote
471	21.955	22.487	0.266	0.266	557.66	571.12	6.73	6.73	Get a Quote
472	22.94	23.472	0.266	0.266	582.68	596.14	6.73	6.73	Get a Quote
473	23.94	24.472	0.266	0.266	608.08	621.54	6.73	6.73	Get a Quote
474	24.94	25.472	0.266	0.266	633.48	646.94	6.73	6.73	Get a Quote
475	25.94	26.472	0.266	0.266	658.88	672.34	6.73	6.73	Get a Quote

If you'd like to discuss your specialty application with a product expert, please contact our CBD SEALS Team：sale@bdseals.com

O-Ring Size Measurement：

1. Inside Diameter (ID) Measurement:

Use calipers or an ID micrometer to measure the inside diameter of the O-ring.

Measurements should be made to ensure that the O-ring is not twisted or deformed.

Usually measure two or three different locations to ensure consistent dimensions.

Record the smallest measurement as this is usually the tightest dimension of the O-Ring during assembly.

2. Cross-section diameter (CS) measurement:

Use an OD micrometer or micrometer gauge to measure the cross-section diameter of the O-ring.

Take measurements at several different locations on the O-ring, usually at four equal points along the circumference.

Record the largest measurement, as this is usually the loosest dimension of the O-ring during assembly.

Product features

Simple structure: square cross-section design, simple structure, easy processing and installation.

Reliable sealing performance: rectangular cross-section can provide good contact pressure, reliable sealing performance.

Easy to install: Can be installed directly in the groove without special tools.

Resistant to wear and aging: High quality rubber material is selected, which has good resistance to wear and aging.

Various materials available: Different rubber materials can be selected according to different application environments, such as:

Nitrile Rubber (NBR): Oil, abrasion and heat resistant, suitable for general industrial applications.

Fluoroelastomer (FKM): High temperature and chemical resistant, suitable for harsh environments.

Silicone Rubber (VMQ): Resistant to high and low temperatures, ozone resistant, suitable for food, medical and other industries.

Hydrogenated Nitrile Butadiene Rubber (HNBR): High temperature, oil and chemical resistant, suitable for high performance applications.

Various sizes: Customised square ring rubber products are available in different sizes according to customers’ requirements.

Square Ring Size Chart

AS-568 USA Standard O-ring Size Chart

Universal Standard O-ring Size Chart

Common Metric Standard O-ring Size Chart

Contact Us

Company

Production

Support

Contact
